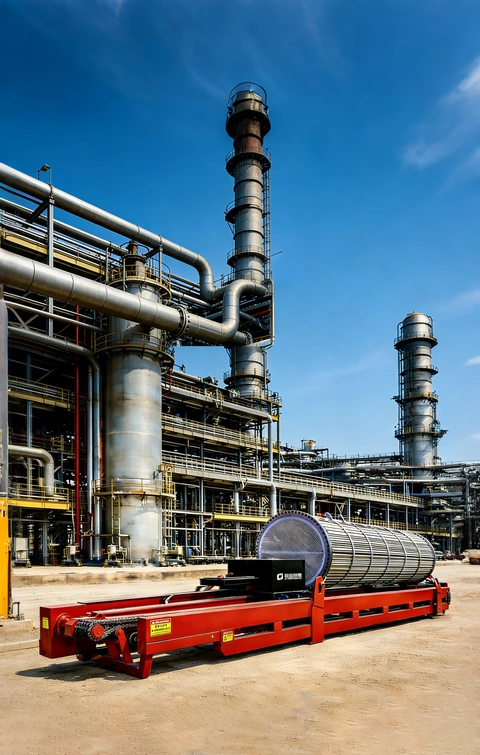

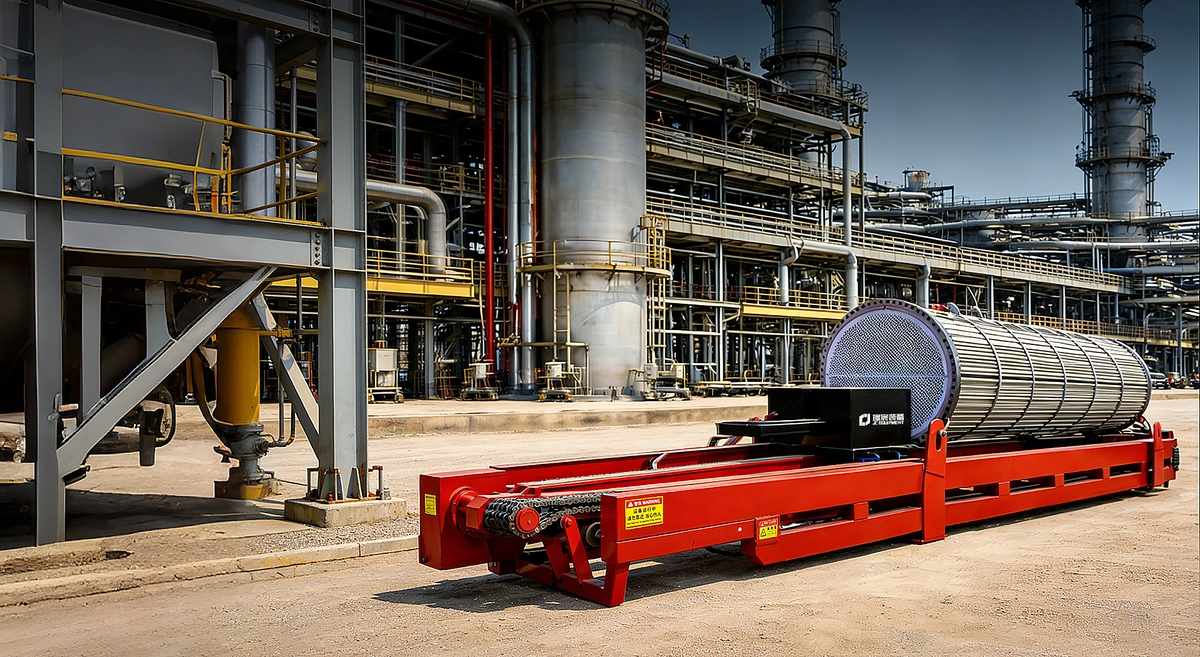

Electric Bundle Puller & Bundle Extractor

The electric bundle puller, also known as an electric bundle extractor or tube bundle extractor, is built for refinery, petrochemical, and plant maintenance environments where stable operation, lower noise, and cleaner working conditions are preferred.

View Parameters View Photos
Drive Type
Electric
Suitable for sites with stable plant power supply.
Maximum Bundle Load
20–100 T
Maximum Bundle Load: 20–100 T across the listed configurations.
Maximum Pulling Force: 15–100 T across the listed configurations.
Control Style
Smooth
Better suited for more controlled extraction movement.
Noise Level
Low
Cleaner and quieter than diesel alternatives.
Use Environment
Plant Area
Refinery, petrochemical, power station, and workshop use.
Core Parameters

Technical Reference Matrix

Reference Data

Model Matching Based on Real Conditions

We recommend the final electric model according to bundle weight, bundle length, bundle diameter, operating space, and plant power conditions.

Ask Us
MODEL LENGTH
(MM)		 DIAMETER
(MM)		 MAXIMUM PULLING FORCE
(T)		 MAXIMUM BUNDLE LOAD
(T)		 DEAD LOAD
(T)		 OVERALL SIZE
(MM)		 POWER
(KW)

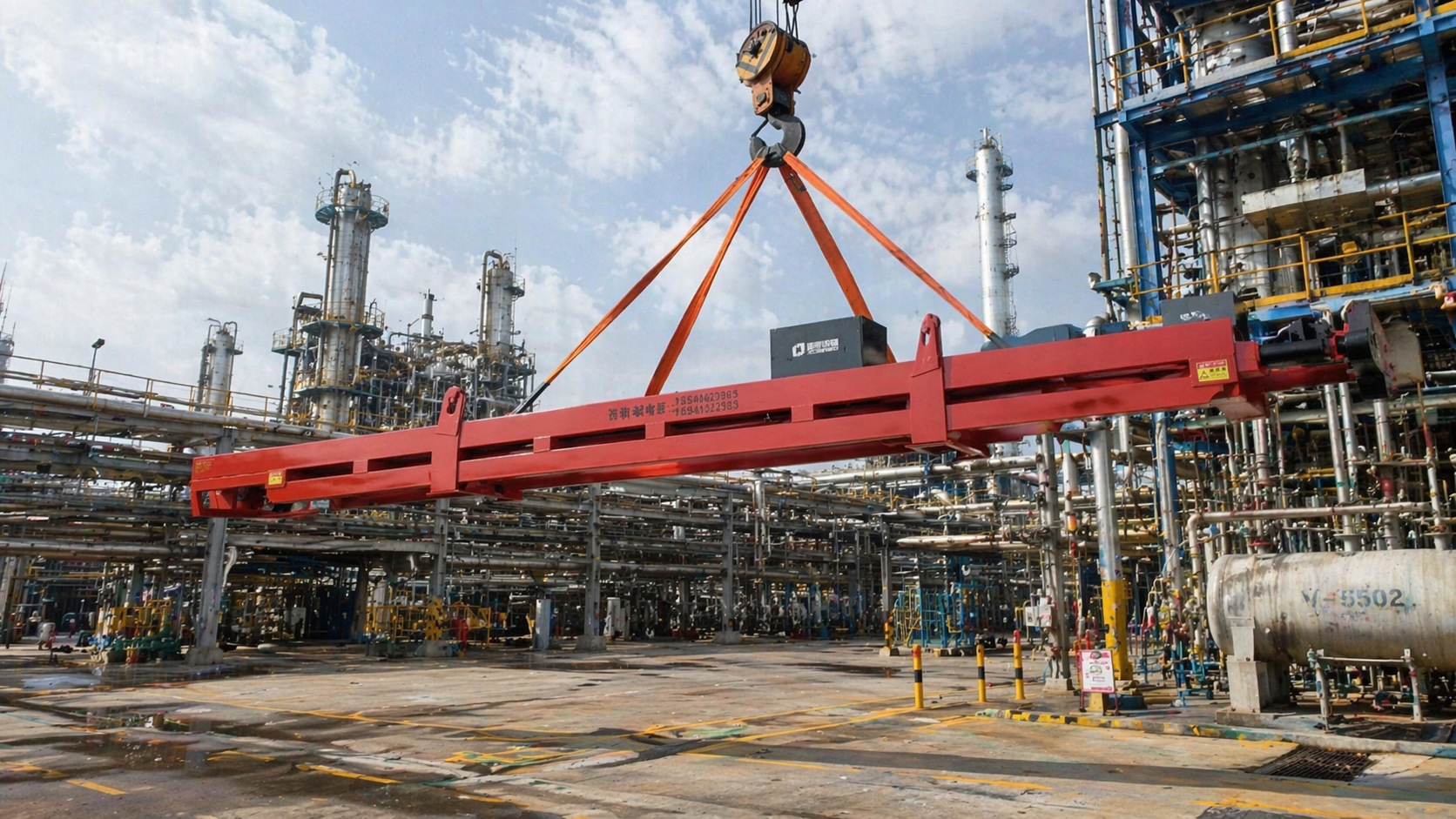

JCE100-6 6000 1000 15 20 3.5 9600×1200×1200 9

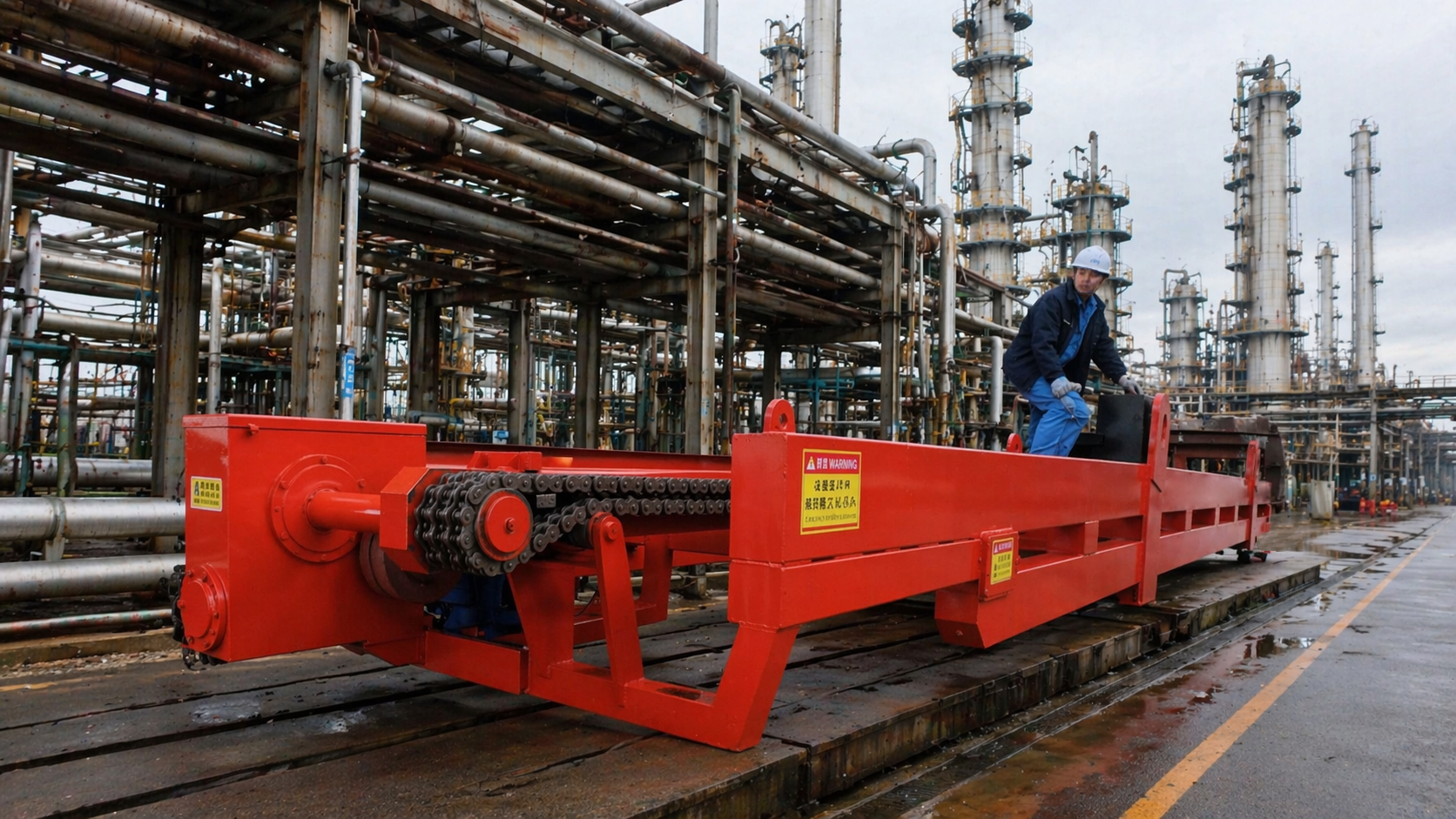

JCE120-6 6000 1200 20 20 3.5 9600×1400×1200 13.2

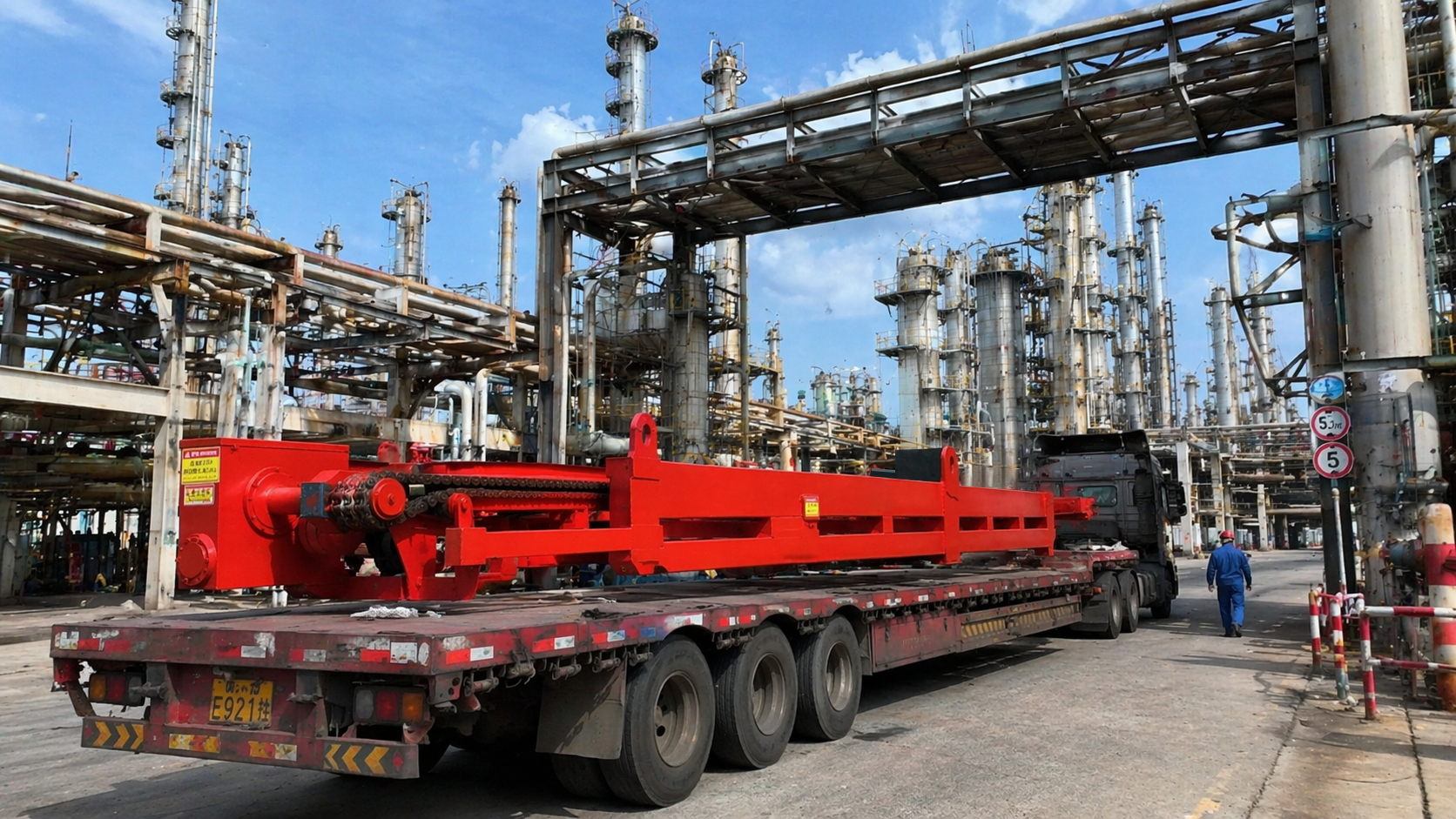

JCE140-6 6000 1400 30 30 4.8 9600×1600×1230 13.2

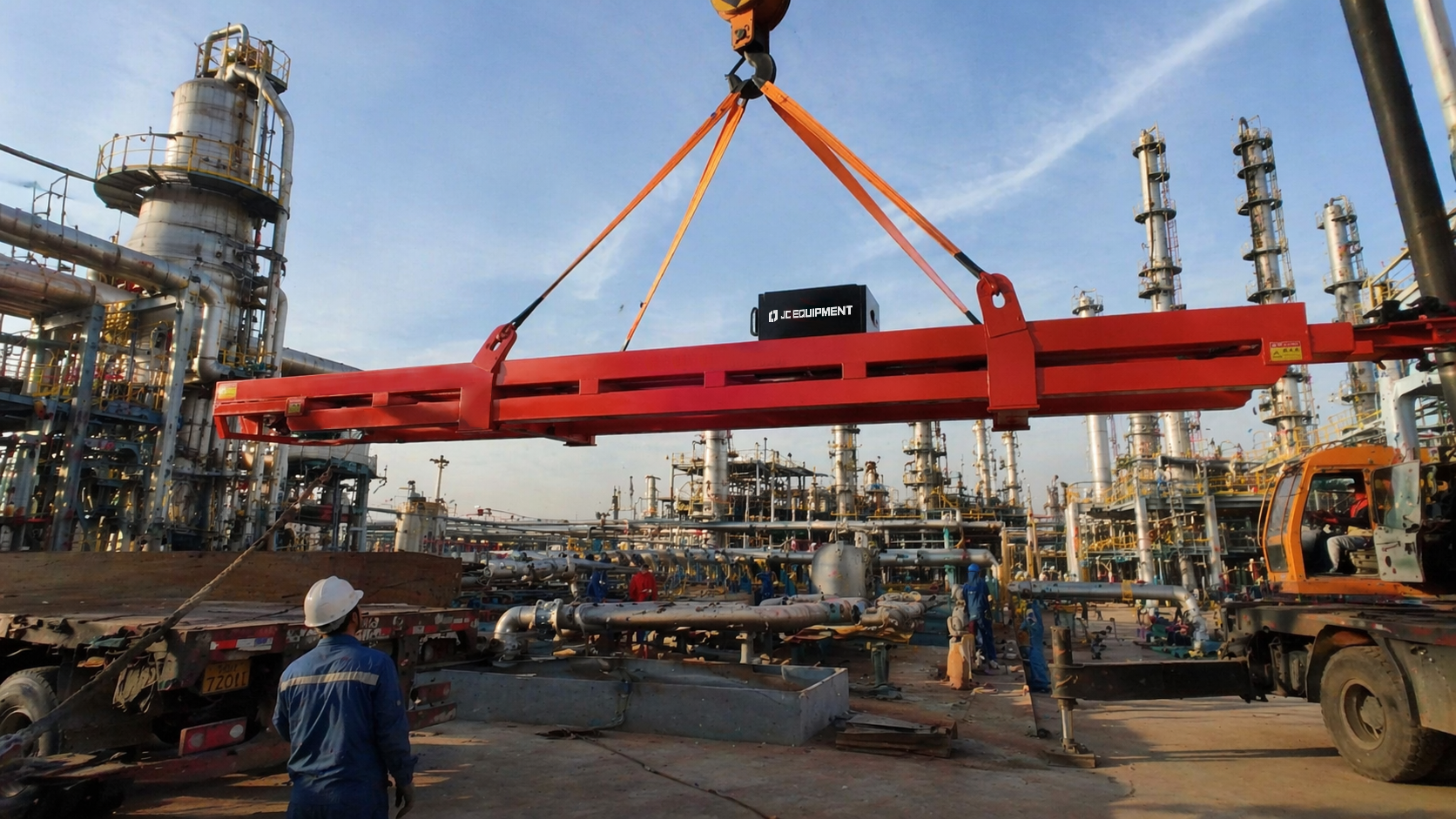

JCE180-6 6000 1800 40 40 6.1 9600×2000×1300 17.2
JCE180-9 9000 1800 45 45 6.9 12600×2000×1300 17.2
JCE180-12 12000 1800 45 45 9.3 15600×2000×1300 18

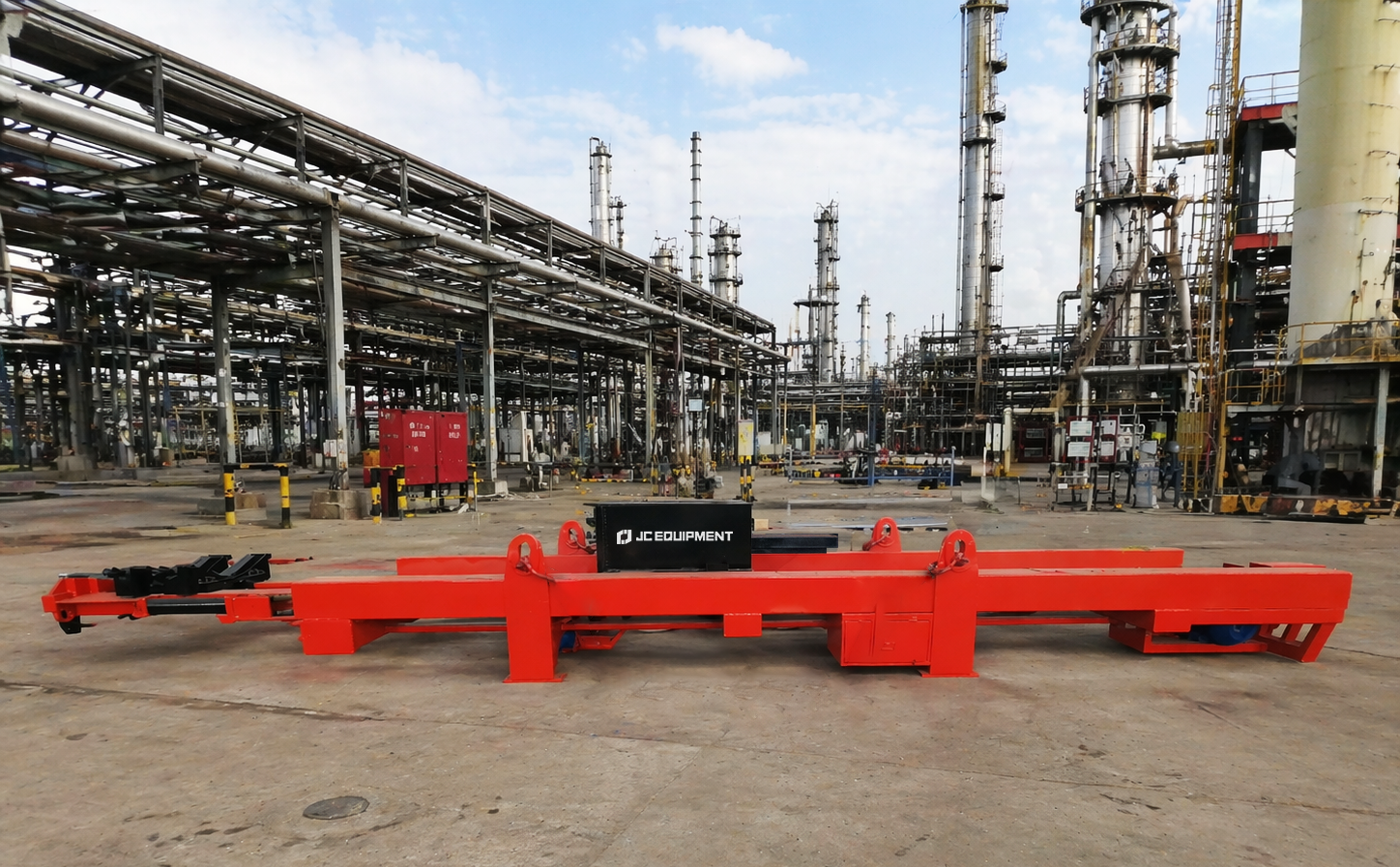

JCE200-6 6000 2000 45 45 7.8 9600×2200×1350 18
JCE200-9 9000 2000 50 50 8.5 12600×2200×1350 18
JCE200-12 12000 2000 55 55 9.1 15600×2200×1350 18

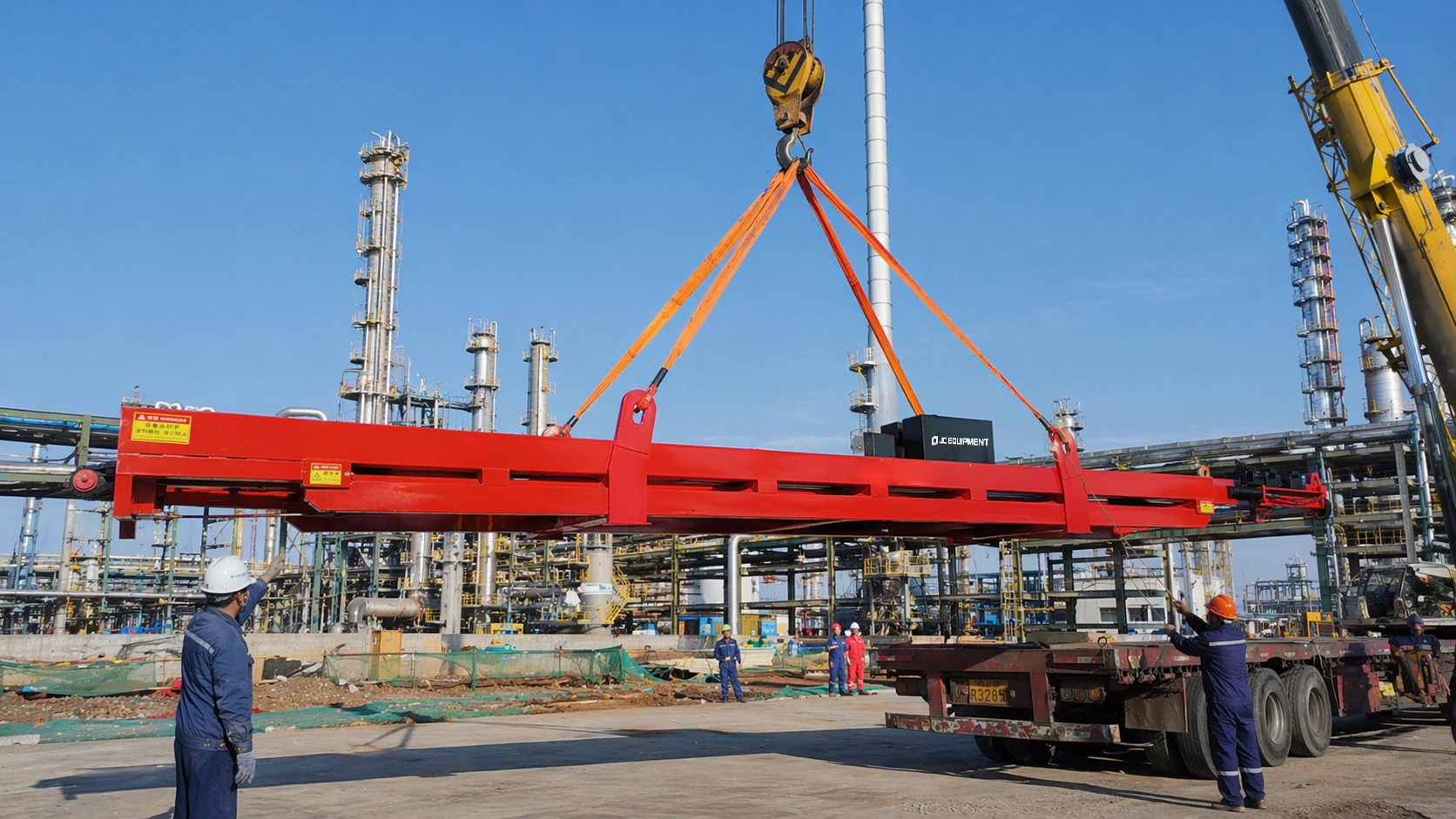

JCE220-9 9000 2200 60 60 9.6 12600×2400×1450 18
JCE220-12 12000 2200 65 65 10.8 15600×2400×1450 21.5

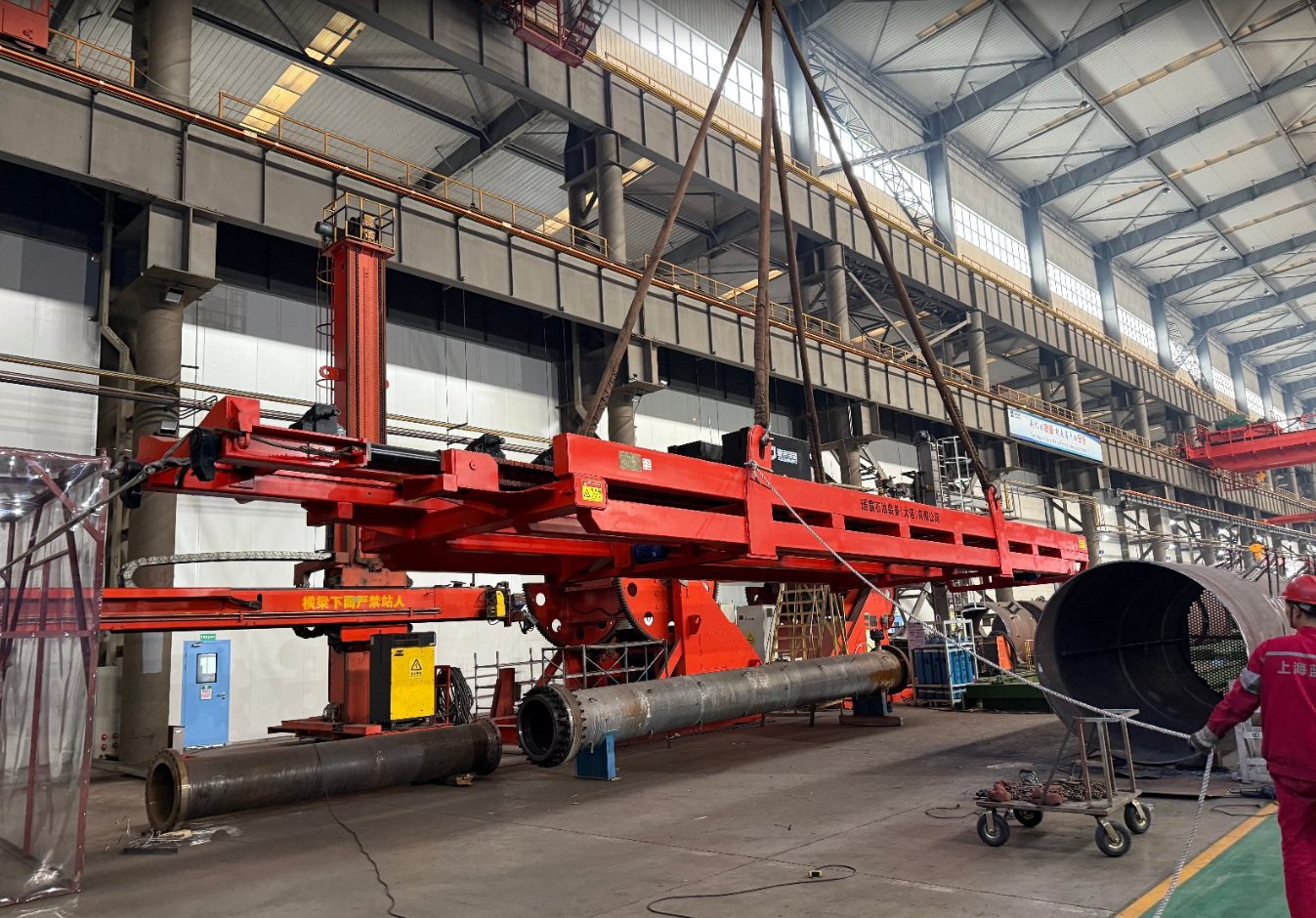

JCE240-9 9000 2400 70 70 12.3 12600×2600×1550 21.5
JCE240-12 12000 2400 75 75 13.2 15600×2600×1550 21.5

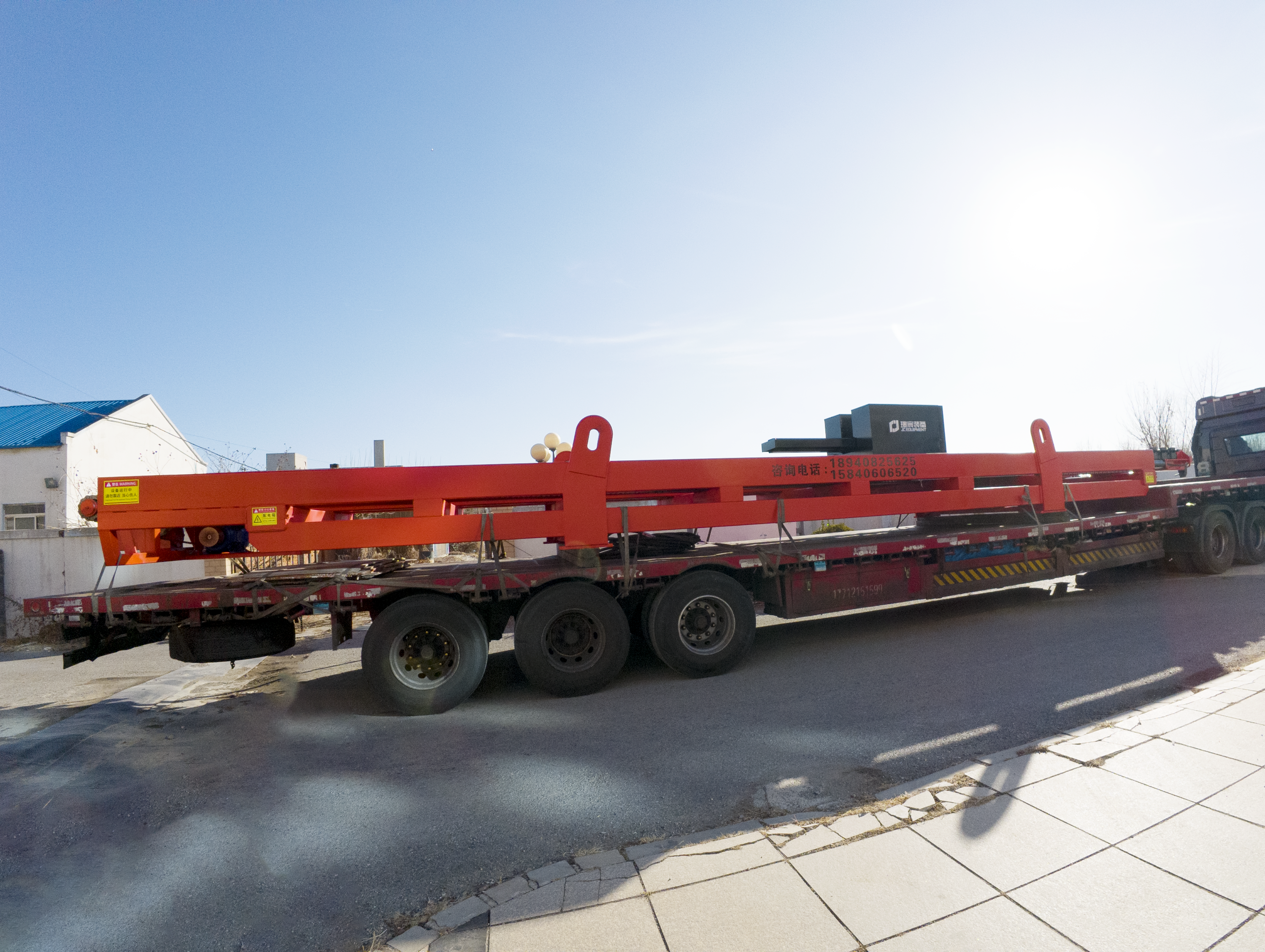

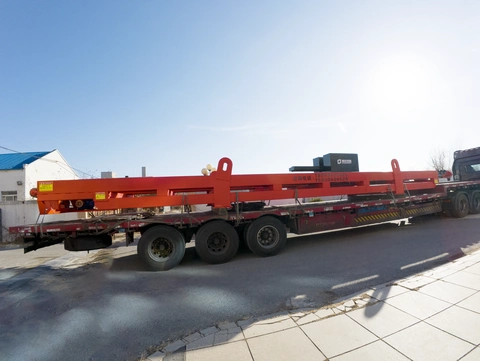

JCE260-9 9000 2600 80 80 16.1 12600×2800×1750 22.5
JCE260-12 12000 2600 85 85 17.2 15600×2800×1750 22.5
JCE260-15 15000 2600 90 90 18.8 18600×2800×1750 22.5

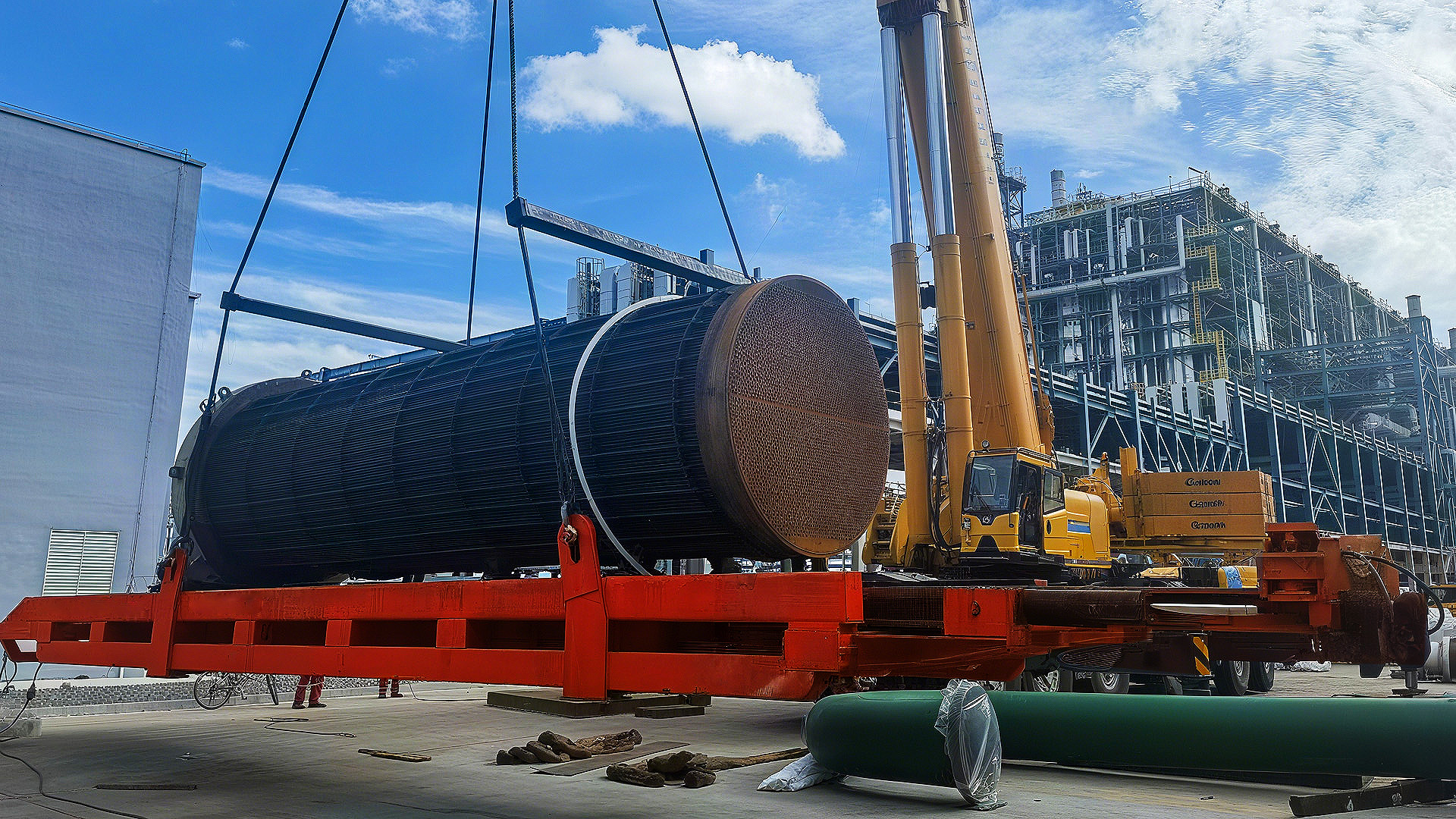

JCE280-12 12000 2800 95 95 19.3 15600×3000×1770 22.5
JCE280-15 15000 2800 100 100 20.2 18600×3000×1770 22.5
Product Advantages

Six Reasons to Choose Electric

Stable Power Output

Electric drive provides smoother and more predictable operating performance during extraction work.

Lower Noise

More suitable for indoor or semi-enclosed maintenance areas where noise control matters.

Cleaner Operation

No engine exhaust makes the equipment better suited to cleaner plant environments.

Better Control

Operators can achieve more stable and controlled handling during bundle extraction.

Plant-Friendly Use

Well suited for refineries, petrochemical plants, and power station maintenance areas.

Flexible Matching

Configuration can be adjusted according to actual bundle size and operating conditions.

Applications

Where the Electric Model Works Best

Refinery

Routine Maintenance

Suitable for day-to-day heat exchanger maintenance in fixed refinery maintenance areas.

Petrochemical

Turnaround Service

Supports shutdown and turnaround maintenance where cleaner operation is preferred.

Power Station

Workshop Handling

Applicable to power plant maintenance projects with stable power supply conditions.

Industrial Plant

Fixed Service Area

More suitable than diesel versions in controlled and cleaner operating environments.

Questions

Common questions

Before operation, check the plant power supply, cable connection, control system, hydraulic system, fasteners, and travel path. It is also important to confirm the tube bundle weight, length, and diameter, as well as the available working space, before selecting the proper electric model and operating method.
Daily maintenance should include cleaning the equipment after use, checking the motor, control cabinet, cables, hydraulic oil, hoses, and seals, and lubricating key moving parts on time. Regular inspection of electrical components and the hydraulic system helps keep the machine stable and efficient during long-term plant service.
Operating duration and duty cycle must follow the approved instructions for the supplied configuration. Confirm the required operating schedule with our technical team.
During operation, attention should be paid to power isolation, grounding, cable protection, load limits, emergency stop readiness, and operator coordination. It is also necessary to ensure a dry and safe working environment, stable electrical connection, and clear space around the equipment.
