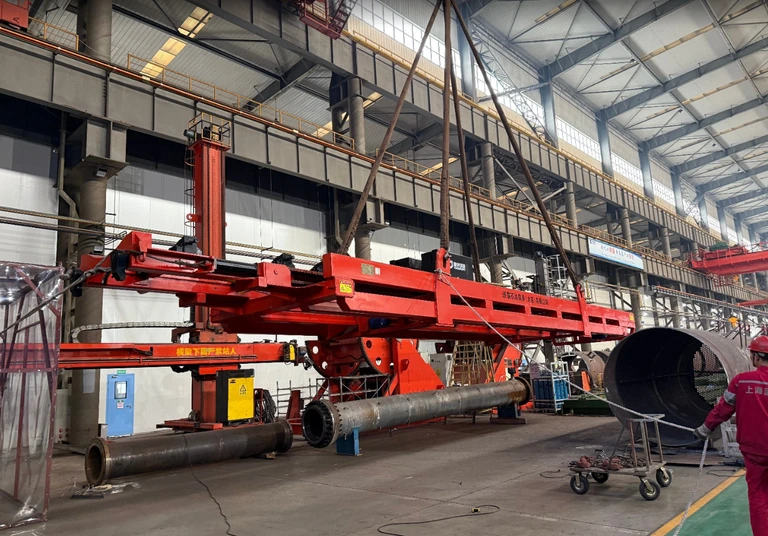

JCE240 Electric Tube Bundle Extractor
An electric series for 2400 mm reference bundles requiring a 70T or 75T class.
JCE240 provides two long-length options with a common listed power value. It is a comparison point for larger assemblies where machine mass and the working corridor must be checked alongside capacity.
JCE240 Technical Specifications
JCE240
Both JCE240 variants list 21.5 kW. Their force, load, length and dead-load entries remain distinct.
| Model / Variant | JCE240-9 | JCE240-12 |
|---|---|---|
| Regular Tube Bundle Length (mm) | 9000 | 12000 |
| Reference Tube Bundle Diameter (mm) | 2400 | 2400 |
| Maximum Pulling Force (T) | 70 | 75 |
| Maximum Bundle Load (T) | 70 | 75 |
| Dead Load (T) | 12.3 | 13.2 |
| Overall Dimensions (mm) | 12600 × 2600 × 1550 | 15600 × 2600 × 1550 |
| Power (kW) | 21.5 | 21.5 |
Bring the equipment footprint into the maintenance plan.
The nine- and twelve-metre JCE240 variants share a diameter reference but occupy different overall lengths. Their dead loads also differ, which matters when planning delivery, crane use and positioning near the exchanger.
Use the technical row to coordinate those interfaces before choosing a work position. A capacity match alone does not establish whether the equipment and supported bundle can move through the available area.
