JCE180 Electric Tube Bundle Extractor
Three electric length variants for the 1800 mm diameter series.
JCE180 covers six-, nine- and twelve-metre reference bundles. The variants have different force, weight and power entries, so choosing the suffix is an important part of selecting the machine.
JCE180 Technical Specifications
JCE180
Each JCE180 suffix identifies a separate data row. Review its capacity, overall size and power together.
| Model / Variant | JCE180-6 | JCE180-9 | JCE180-12 |
|---|---|---|---|
| Regular Tube Bundle Length (mm) | 6000 | 9000 | 12000 |
| Reference Tube Bundle Diameter (mm) | 1800 | 1800 | 1800 |
| Maximum Pulling Force (T) | 40 | 45 | 45 |
| Maximum Bundle Load (T) | 40 | 45 | 45 |
| Dead Load (T) | 6.1 | 6.9 | 9.3 |
| Overall Dimensions (mm) | 9600 × 2000 × 1300 | 12600 × 2000 × 1300 | 15600 × 2000 × 1300 |
| Power (kW) | 17.2 | 17.2 | 18 |
Select the variant, not just the series number.
This is where the electric reference range introduces several working lengths under one diameter series. A maintenance planner can compare JCE180-6, JCE180-9 and JCE180-12 while keeping the bundle-diameter reference consistent.
The shortest variant has a different force and load class from the longer two. Overall length and dead load also increase across the options, so the selected row needs to carry through into the crane and positioning plans.
Other Electric Models
Compare JCE140, JCE200, JCE120 for alternative electric configurations alongside JCE180.
JCE140 Electric Tube Bundle Extractor
JCE140 series is grouped by its 1400 mm reference bundle diameter. Available configurations in the matrix provide 30T pull force.
View Product →

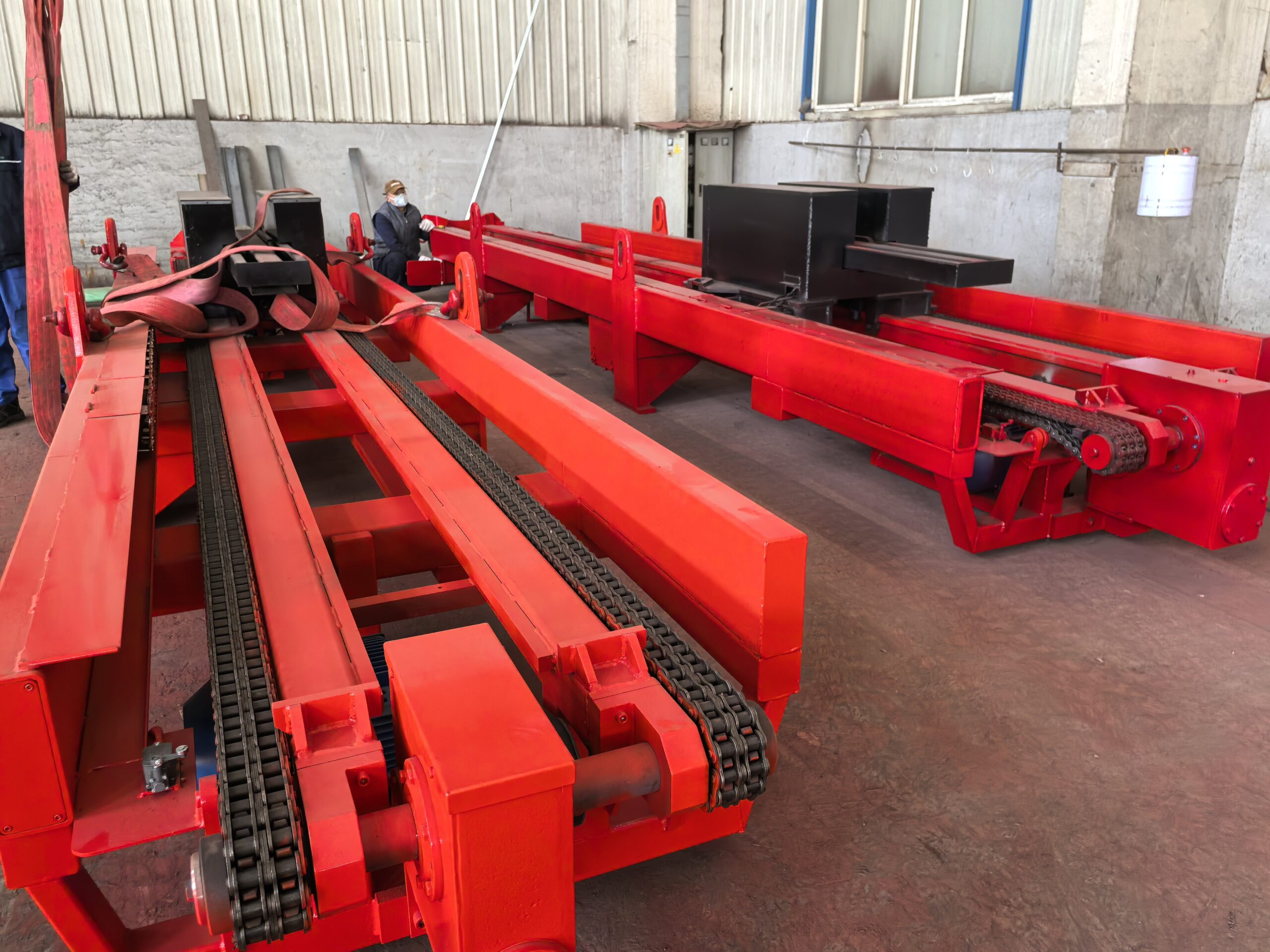

JCE200 Electric Tube Bundle Extractor
