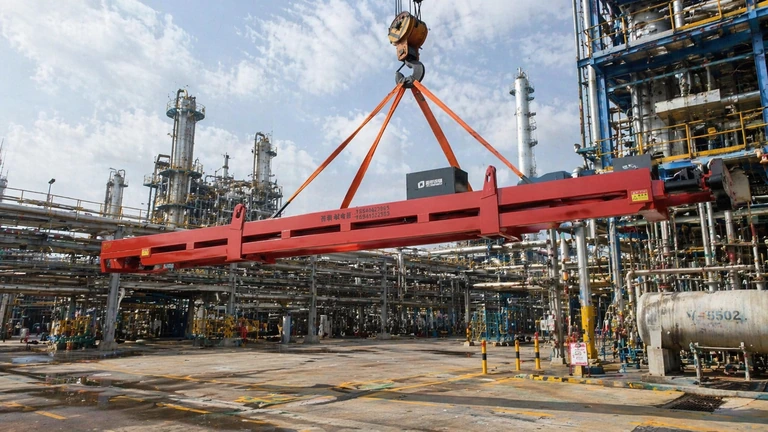

JCE100 Electric Tube Bundle Extractor
A six-metre electric configuration for the smallest diameter series in the reference range.
JCE100 provides a starting point for smaller bundle work where electrical supply is available at the maintenance position. Its model number identifies the diameter series, while pulling force and supported load are listed separately.
JCE100 Technical Specifications
JCE100
JCE100-6 is the single listed variant in this series. Its 15T pull-force and 20T load references must be read separately.
| Model / Variant | JCE100-6 |
|---|---|
| Regular Tube Bundle Length (mm) | 6000 |
| Reference Tube Bundle Diameter (mm) | 1000 |
| Maximum Pulling Force (T) | 15 |
| Maximum Bundle Load (T) | 20 |
| Dead Load (T) | 3.5 |
| Overall Dimensions (mm) | 9600 × 1200 × 1200 |
| Power (kW) | 9 |
Start with the smaller bundle, then check the two capacity limits.
The JCE100-6 reference pairs a compact diameter class with a six-metre bundle length. It is a useful comparison for planned maintenance positions that can support an electrically powered extraction arrangement.
This entry has different pull-force and load values. Keep those figures separate when preparing the enquiry: the weight that must be supported is not the same question as the force required to free and move the bundle.
Other Electric Models
Compare JCE120, JCE140, JCE180 for alternative electric configurations alongside JCE100.

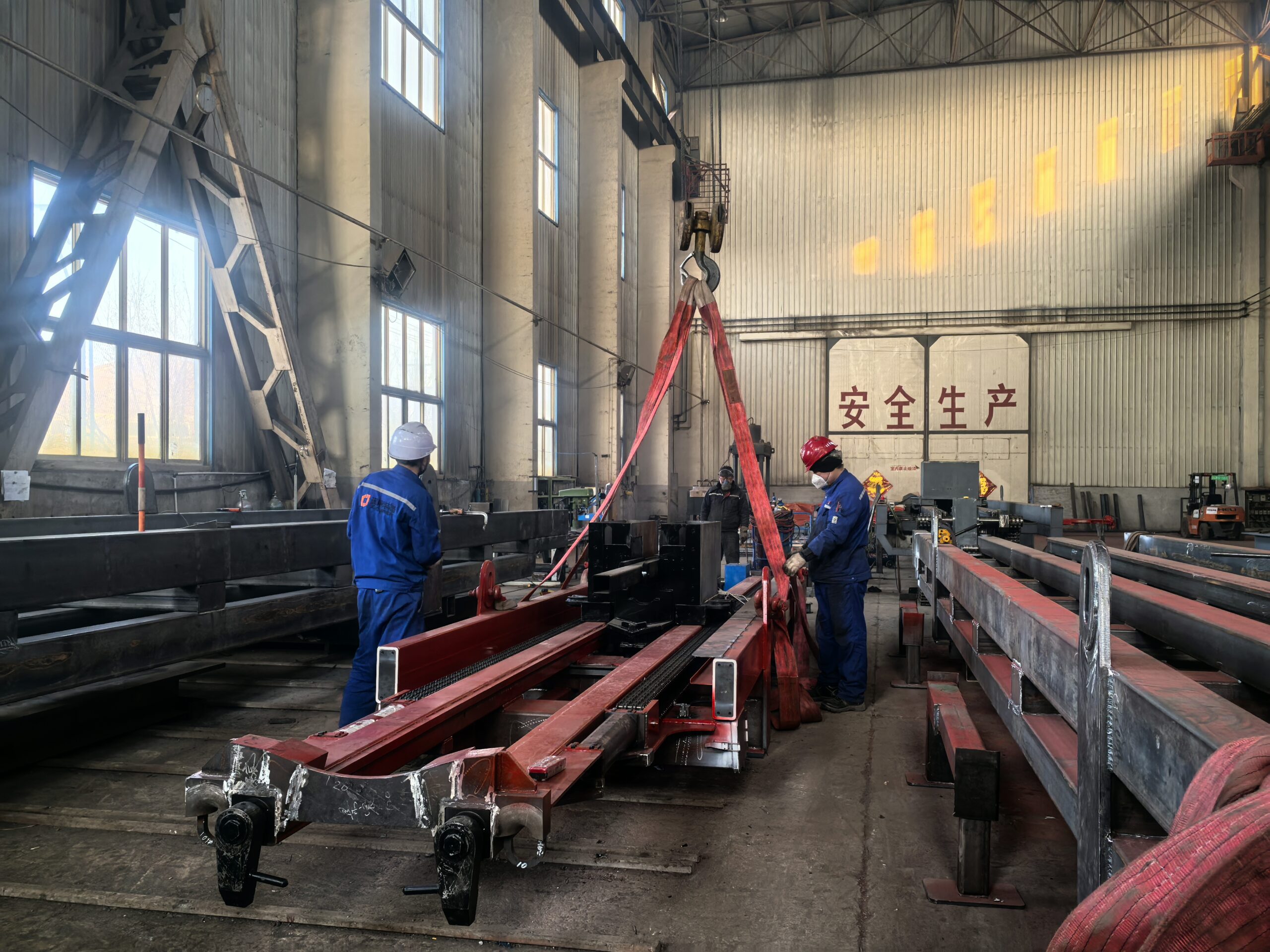

JCE120 Electric Tube Bundle Extractor
JCE120 series is grouped by its 1200 mm reference bundle diameter. Available configurations in the matrix provide 20T pull force.
View Product →

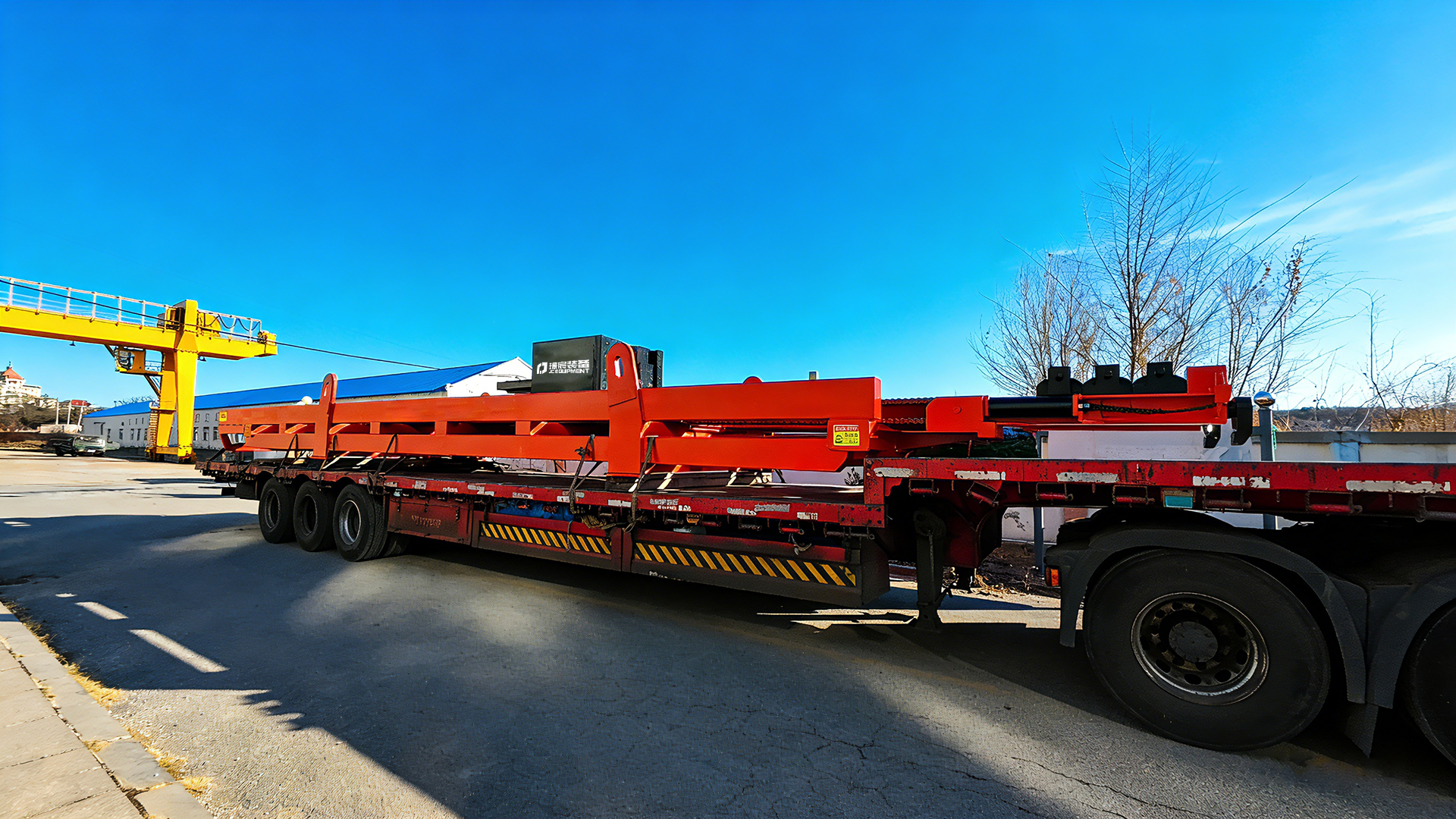

JCE140 Electric Tube Bundle Extractor
