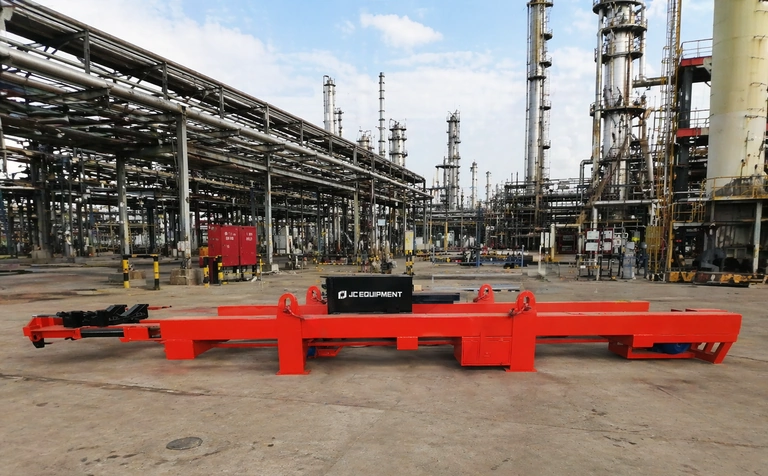

JCE200 Electric Tube Bundle Extractor
A two-metre diameter series with load and pulling force limits that change across three working lengths.
JCE200 offers a structured choice between six-, nine- and twelve-metre bundles. Its pull-force and load references rise with the listed length variants, while the published power value remains the same.
JCE200 Technical Specifications
JCE200
JCE200-6, -9 and -12 have separate 45T, 50T and 55T force and load references.
| Model / Variant | JCE200-6 | JCE200-9 | JCE200-12 |
|---|---|---|---|
| Regular Tube Bundle Length (mm) | 6000 | 9000 | 12000 |
| Reference Tube Bundle Diameter (mm) | 2000 | 2000 | 2000 |
| Maximum Pulling Force (T) | 45 | 50 | 55 |
| Maximum Bundle Load (T) | 45 | 50 | 55 |
| Dead Load (T) | 7.8 | 8.5 | 9.1 |
| Overall Dimensions (mm) | 9600 × 2200 × 1350 | 12600 × 2200 × 1350 | 15600 × 2200 × 1350 |
| Power (kW) | 18 | 18 | 18 |
Check load and pulling force for each length in the selection.
JCE200 is useful when comparing exchangers with a common diameter class but different bundle lengths. The three reference rows provide distinct combinations rather than one load and pulling force specification shared by the entire family.
Quote the required suffix when discussing the machine with the site team. This avoids transferring the shortest model’s dimensions or the longest model’s force rating onto a different configuration during planning.
