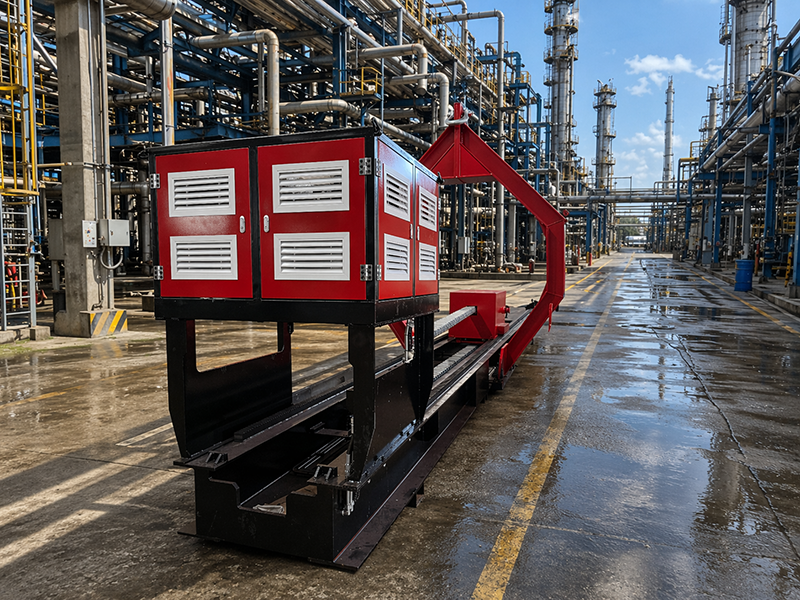

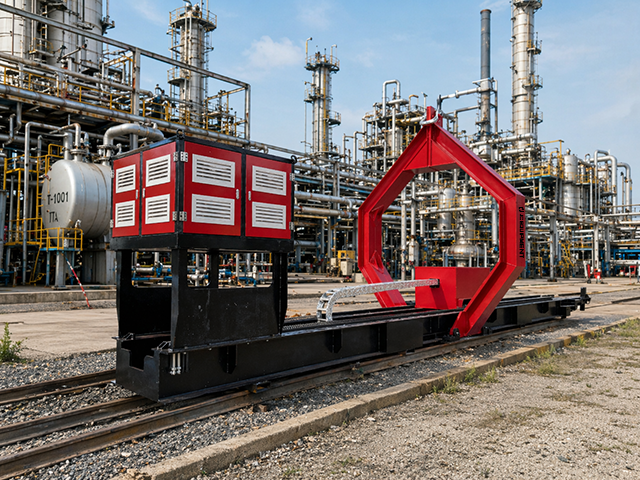

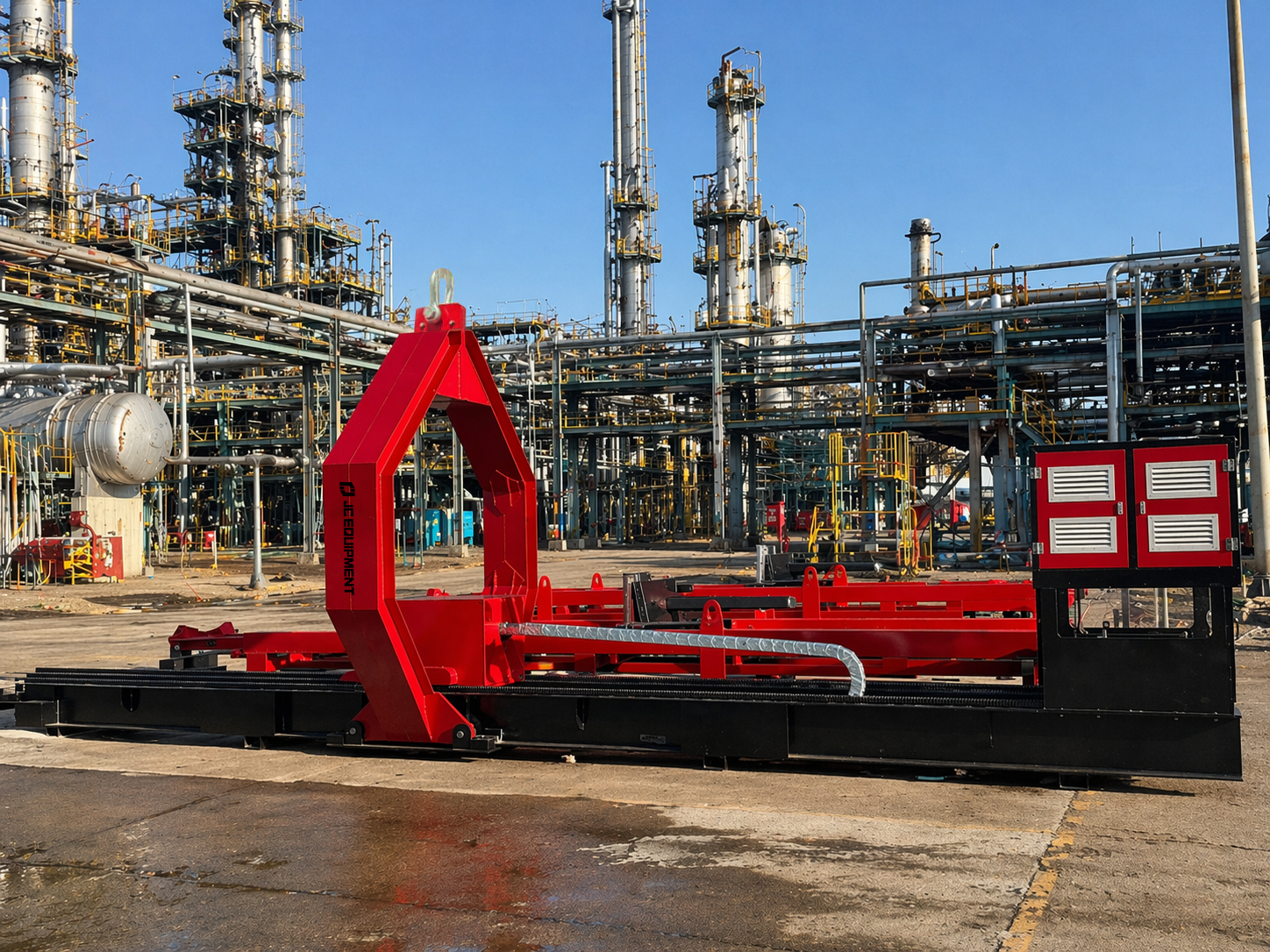

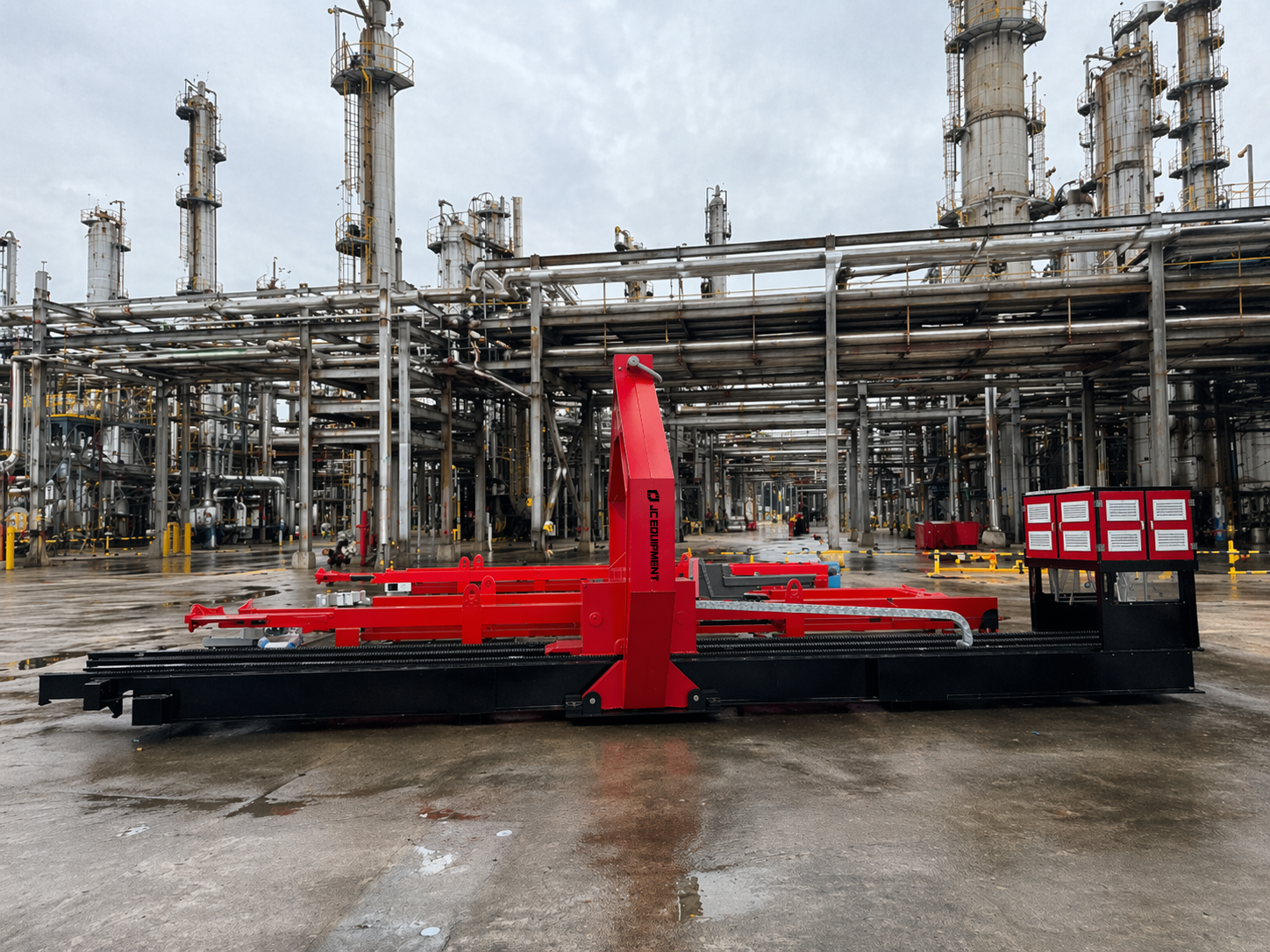

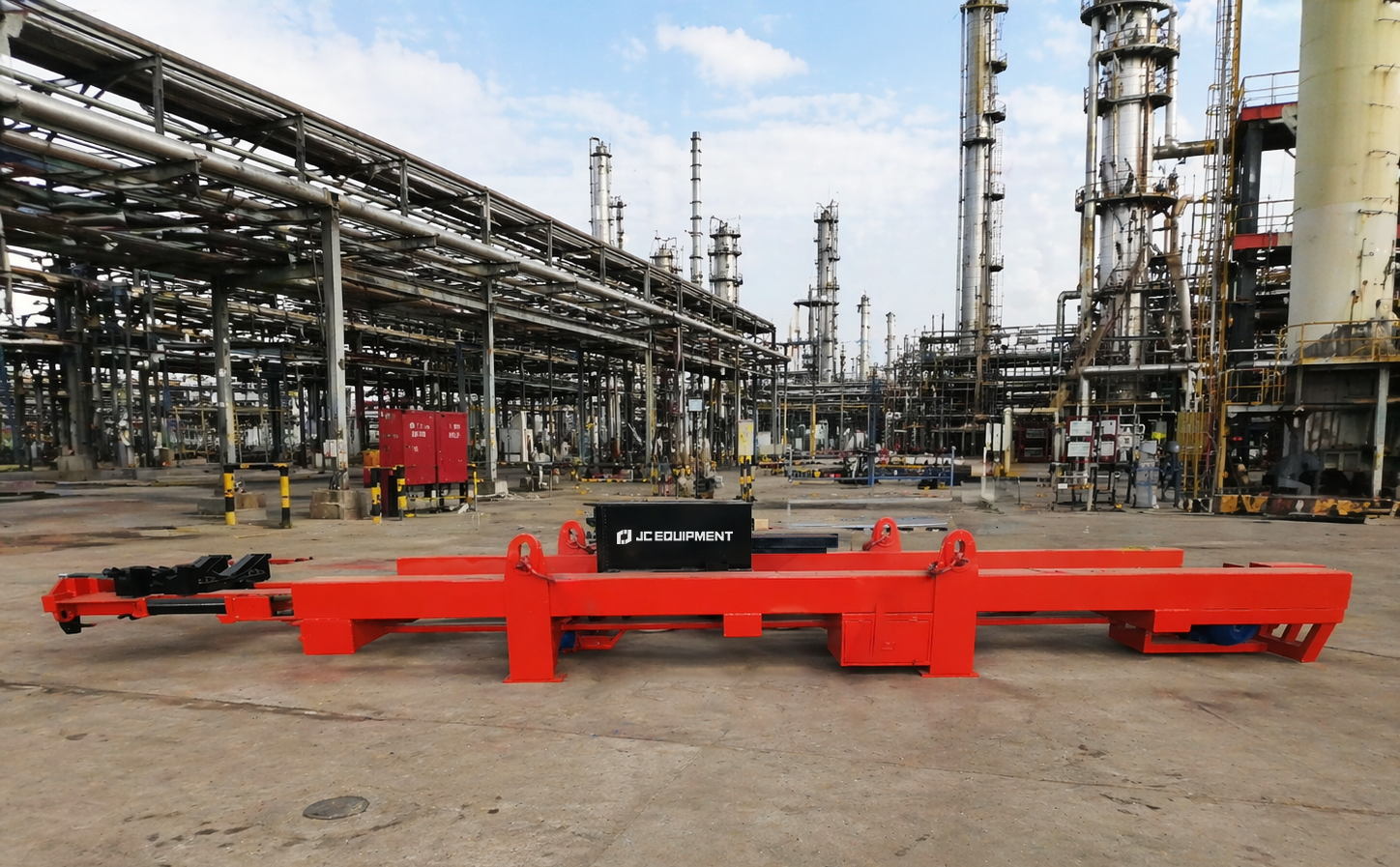

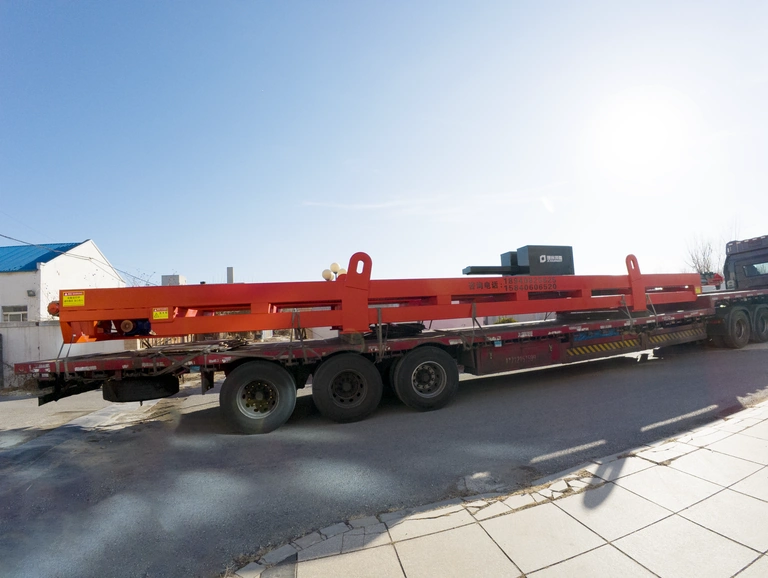

JCE260 Electric Tube Bundle Extractor
Three long-length configurations, extending the electric range to fifteen-metre bundles.
JCE260 offers nine-, twelve- and fifteen-metre variants within the 2600 mm diameter series. The family supports a more detailed comparison when bundle length varies across a large maintenance programme.
JCE260 Technical Specifications
JCE260
JCE260 provides 80T, 85T and 90T reference variants with a shared 22.5 kW power entry.
| Model / Variant | JCE260-9 | JCE260-12 | JCE260-15 |
|---|---|---|---|
| Regular Tube Bundle Length (mm) | 9000 | 12000 | 15000 |
| Reference Tube Bundle Diameter (mm) | 2600 | 2600 | 2600 |
| Maximum Pulling Force (T) | 80 | 85 | 90 |
| Maximum Bundle Load (T) | 80 | 85 | 90 |
| Dead Load (T) | 16.1 | 17.2 | 18.8 |
| Overall Dimensions (mm) | 12600 × 2800 × 1750 | 15600 × 2800 × 1750 | 18600 × 2800 × 1750 |
| Power (kW) | 22.5 | 22.5 | 22.5 |
Make room for the longest assembly on the schedule.
A fifteen-metre exchanger bundle requires a different space assessment from a nine-metre unit. JCE260 includes both ends of that range, with a separate twelve-metre option between them and a specific rating for each configuration.

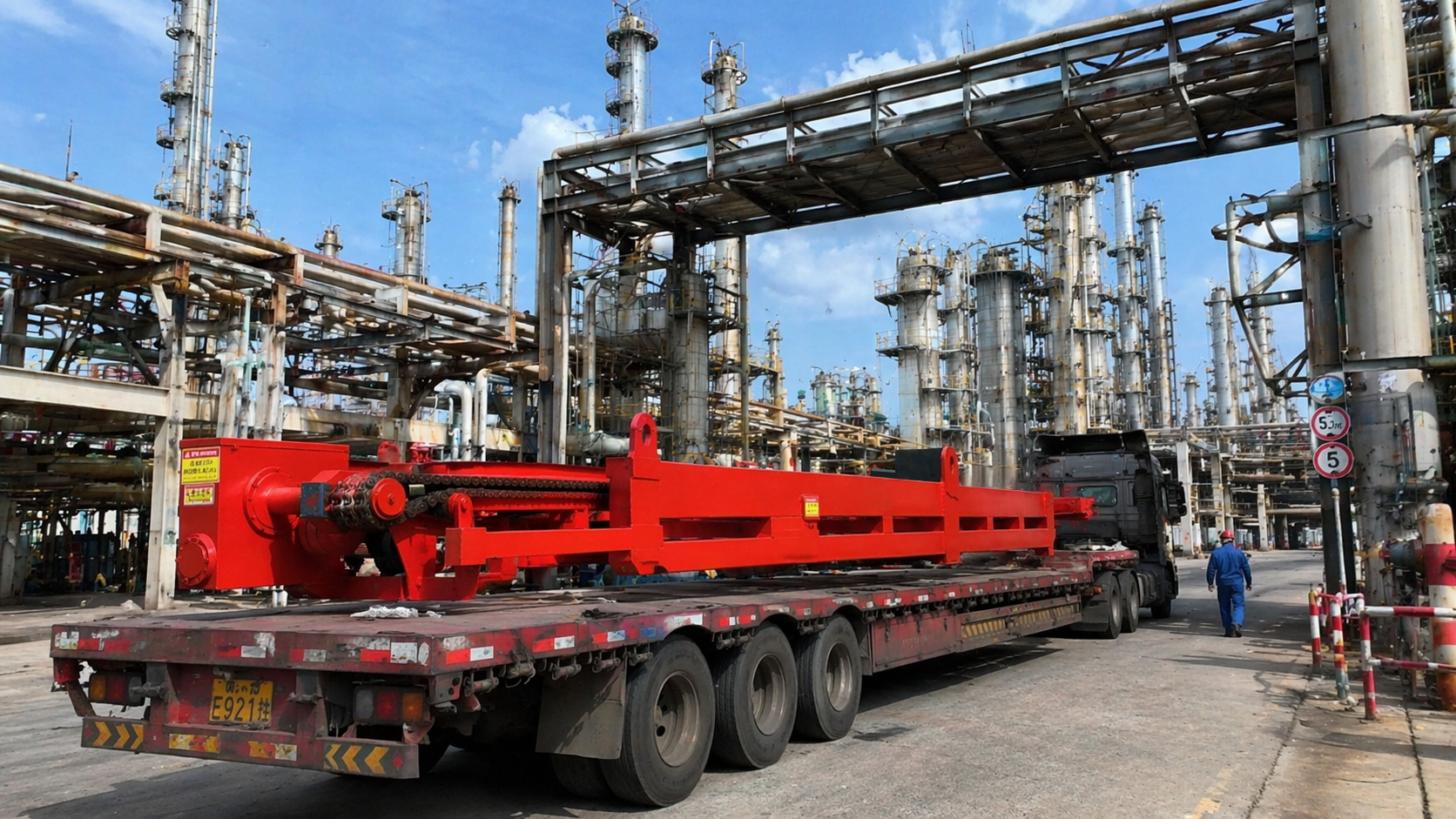

Review the longest required variant against the delivery route and the work area before comparing the smaller options. The source matrix lists substantial differences in overall length and dead load across this family, even though the power entry is common.
Other Electric Models
Compare JCE240, JCE280, JCE220 for alternative electric configurations alongside JCE260.
JCE240 Electric Tube Bundle Extractor
JCE240 series is grouped by its 2400 mm reference bundle diameter. Available configurations in the matrix provide 70–75T pull force.
View Product →
JCE280 Electric Tube Bundle Extractor
JCE280 series is grouped by its 2800 mm reference bundle diameter. Available configurations in the matrix provide 95–100T pull force.
View Product →

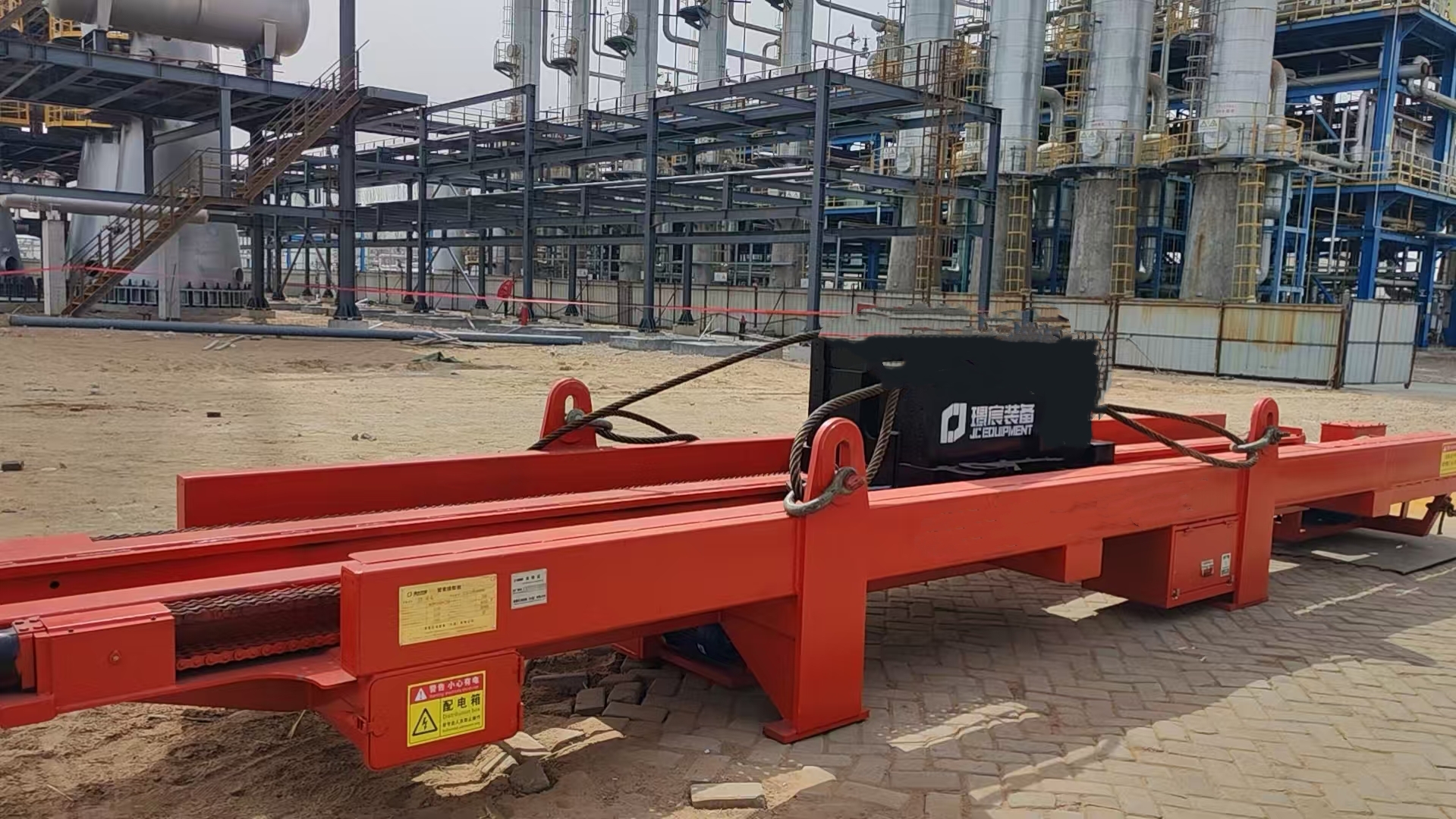

JCE220 Electric Tube Bundle Extractor
