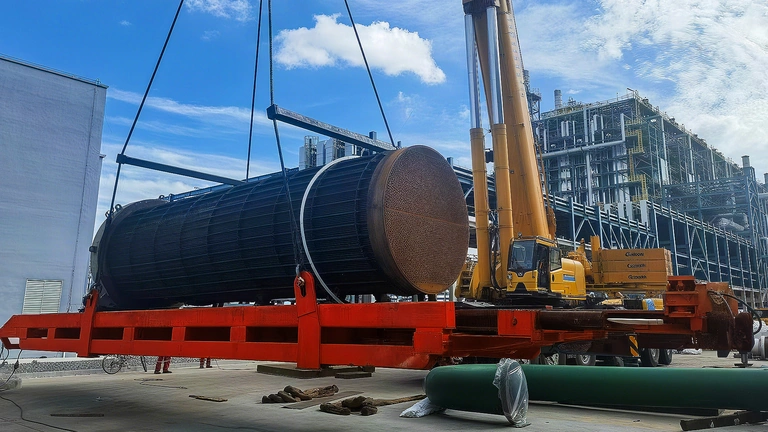

JCE280 Electric Tube Bundle Extractor
The largest listed electric diameter series, with twelve- and fifteen-metre configurations.
JCE280 is the upper comparison point in the electric reference matrix. Its two variants pair large bundle dimensions with different force, load and machine-weight entries for detailed project planning.
JCE280 Technical Specifications
JCE280
JCE280-12 and JCE280-15 represent the two upper-range electric configurations in the current table.
| Model / Variant | JCE280-12 | JCE280-15 |
|---|---|---|
| Regular Tube Bundle Length (mm) | 12000 | 15000 |
| Reference Tube Bundle Diameter (mm) | 2800 | 2800 |
| Maximum Pulling Force (T) | 95 | 100 |
| Maximum Bundle Load (T) | 95 | 100 |
| Dead Load (T) | 19.3 | 20.2 |
| Overall Dimensions (mm) | 15600 × 3000 × 1770 | 18600 × 3000 × 1770 |
| Power (kW) | 22.5 | 22.5 |
Define the complete large-bundle operation at the enquiry stage.
At the top of the listed electric range, the space occupied by the machine and extracted assembly deserves early attention. JCE280 gives the project team two specific long-bundle configurations to compare before transport and work positions are committed.
The longer variant reaches the highest force and load values shown in the electric matrix. Those figures should be considered with the corresponding overall dimensions and dead load, not used as a general rating for every JCE280 arrangement.
