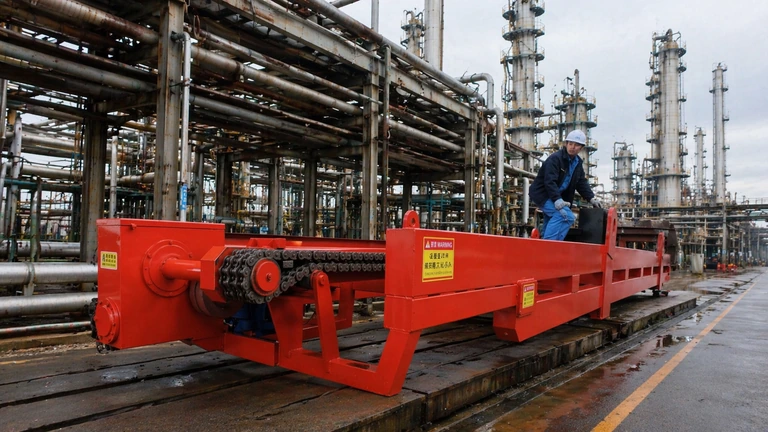

JCE120 Electric Tube Bundle Extractor
A six-metre electric model for the next diameter step above JCE100.
JCE120-6 combines a 1200 mm reference diameter with a 20T force and load class. It gives workshops and plant teams a specific option to compare when the smallest electric series is too narrow.
JCE120 Technical Specifications
JCE120
The formal model designation is JCE120-6.
| Model / Variant | JCE120-6 |
|---|---|
| Regular Tube Bundle Length (mm) | 6000 |
| Reference Tube Bundle Diameter (mm) | 1200 |
| Maximum Pulling Force (T) | 20 |
| Maximum Bundle Load (T) | 20 |
| Dead Load (T) | 3.5 |
| Overall Dimensions (mm) | 9600 × 1400 × 1200 |
| Power (kW) | 13.2 |
Increase the diameter allowance while retaining a short-bundle layout.
For a six-metre exchanger assembly, the step from the 1000 mm to the 1200 mm diameter reference may be more relevant than a move to a much longer machine. JCE120 keeps the enquiry focused on that change in geometry.
Check the equipment width against the approach route and intended working position. Use JCE120-6 when confirming the configuration.
