Diesel Bundle Extractor

Diesel Bundle Puller & Bundle Extractor

The diesel bundle puller, also known as a diesel bundle extractor or tube bundle extractor, is designed for demanding field maintenance work where independent power, strong mobility, and reliable performance are essential. It is especially suitable for outdoor sites, large refinery units, and operating areas without stable plant electricity.

View Parameters View Photos

Drive Type

Diesel

Independent power supply for outdoor and remote working conditions.

Common Models

15T–125T

Widely used capacity range for different tube bundle sizes and loads.

Mobility

Flexible

Easy to move and deploy across different maintenance locations.

Power Source

Self-Contained

No dependence on plant electricity during operation.

Use Environment

Outdoor Site

Ideal for refineries, petrochemical plants, and field maintenance projects.

Core Parameters

Diesel Technical Reference Matrix

Reference Data

Diesel Model Matching Based on Real Conditions

We recommend the final diesel model according to bundle weight, bundle length, bundle diameter, operating space, site accessibility, and actual maintenance conditions.

Ask Us

Name / Model	Pipe Bundle Length MM (Regular Length)	Pipe Bundle Diameter MM (Normal Diameter)	Maximum Pulling Force (T)	Maximum Bundle Load (T)	Dead Load (T)	Boundary Dimension (Length × Width × Height) (MM)	Total Power (kW)
JCD15T	6000	1000	15	15	3.9T	9600×1200×1200	Power configuration varies by version. Please confirm the required configuration with our technical team.
JCD25T	6000	1200/1400	25	25	Different hanging frames have different weights	8600×1450×1200	36.5
JCD35T	6000/9000	1400/1600	35	35	Different hanging frames have different weights	8600/11760×1500×2360	36.5
JCD45T	6000/9000/12000	1800/2000/2200	45	45	Different hanging frames have different weights	8600/11760/14370×1500×2360	36.5
JCD65T	9000/12000	2000/2200/2500	65	65	Different hanging frames have different weights	11760/14370×1500×2360	36.5
JCD85T	9000/12000	2500/2800/3000	85	85	Different hanging frames have different weights	12 m configuration: 14,370 × 1,500 × 2,360 mm (L × W × H). 9 m: Overall dimensions vary by bundle length and configuration.	36.5
JCD100T	12000	2500/2800/3000	100	100	Different hanging frames have different weights	14370×1500×2360	36.5
JCD125T	12000/15000	3000	125	125	Different hanging frames have different weights	14370/17370×1500×2360	36.5

Total Power values apply to the listed reference configurations. Confirm the required power configuration with our technical team.

Featured Models

Featured Diesel Models

Compare the eight JCD models listed in the technical reference matrix. JCD15T power configuration requires version confirmation. Select a model to view its dedicated product introduction and application details.

15T Series

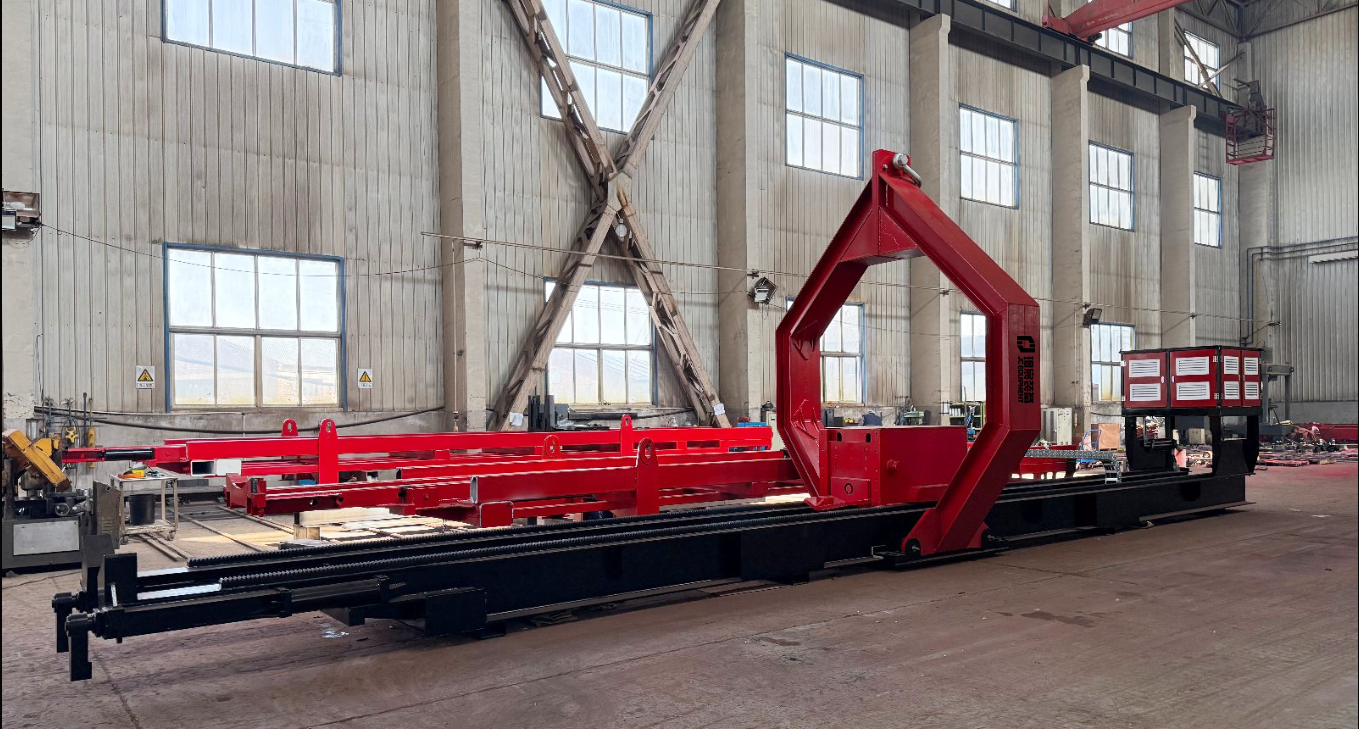

JCD15T Tube Bundle Extractor

Compact 15T configuration for 6000 mm tube bundles and smaller normal bundle diameters.

Regular Length 6000 mm

Normal Diameter 1000 mm

25T Series

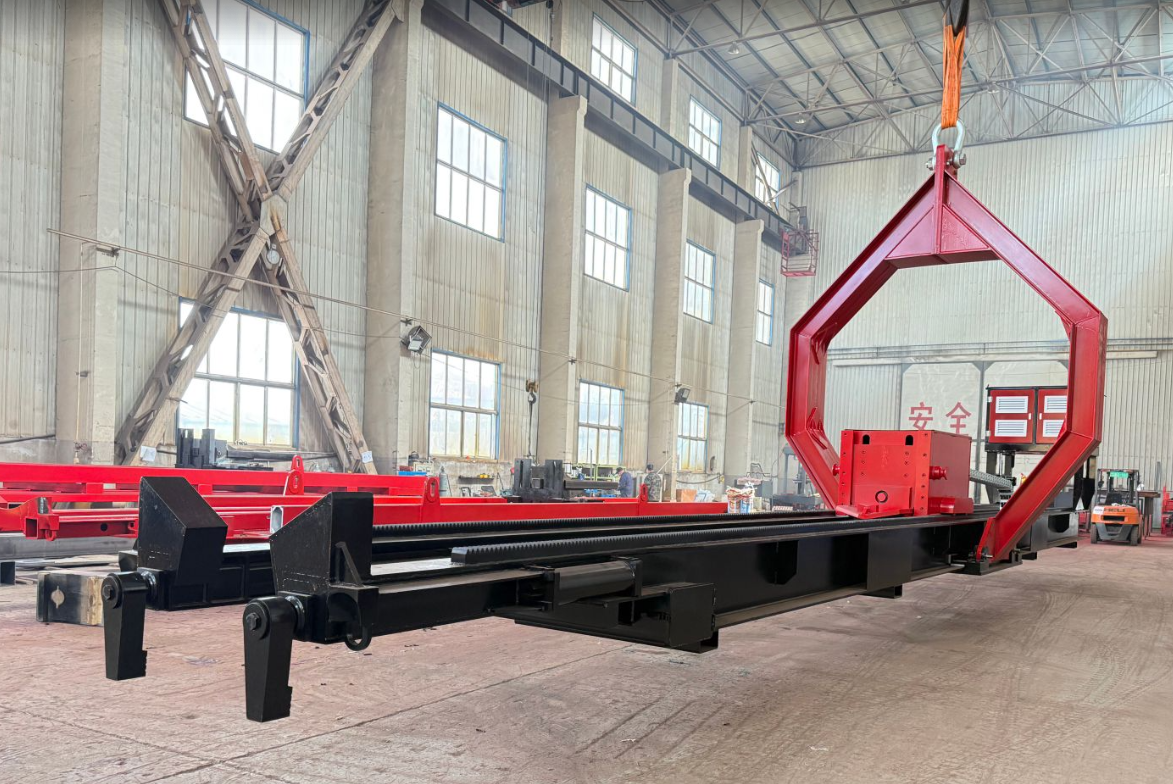

JCD25T Diesel Tube Bundle Extractor

25T configuration for 6000 mm tube bundles with 1200 or 1400 mm normal bundle diameters.

Regular Length 6000 mm

Normal Diameter 1200 / 1400 mm

35T Series

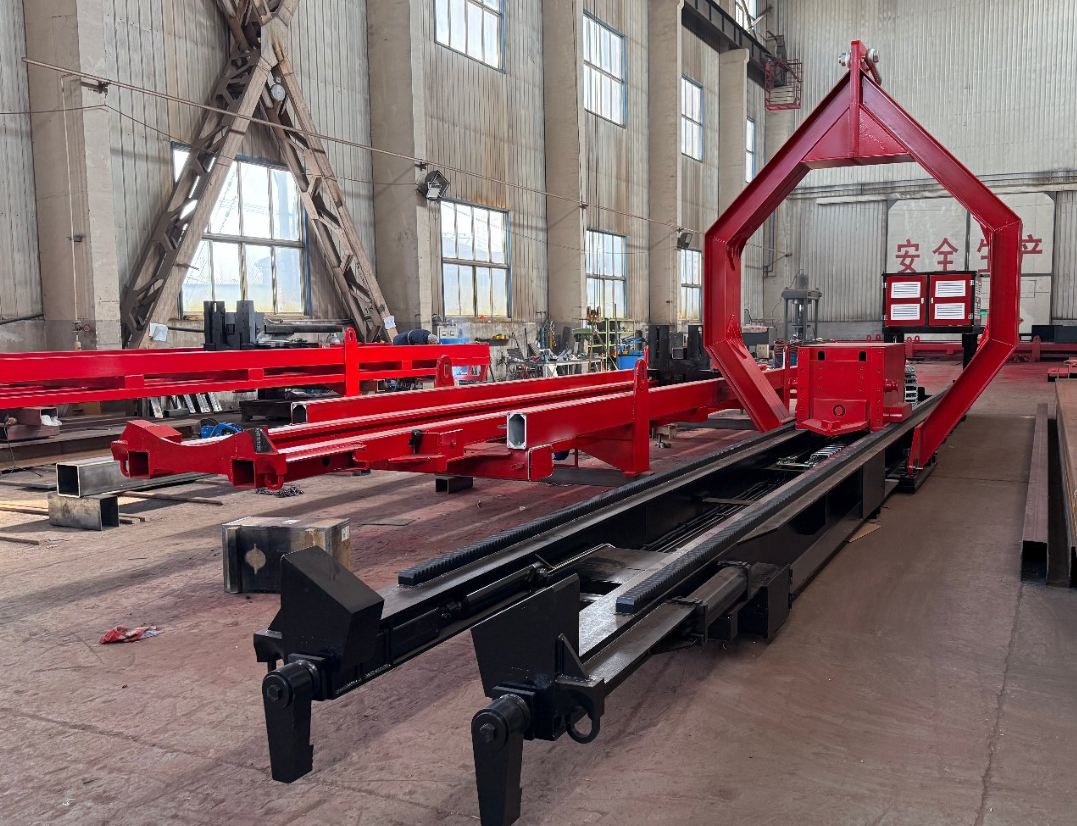

JCD35T Diesel Tube Bundle Extractor

35T configuration with 6000 or 9000 mm regular length for medium-size tube bundle requirements.

Regular Length 6000 / 9000 mm

Normal Diameter 1400 / 1600 mm

45T Series

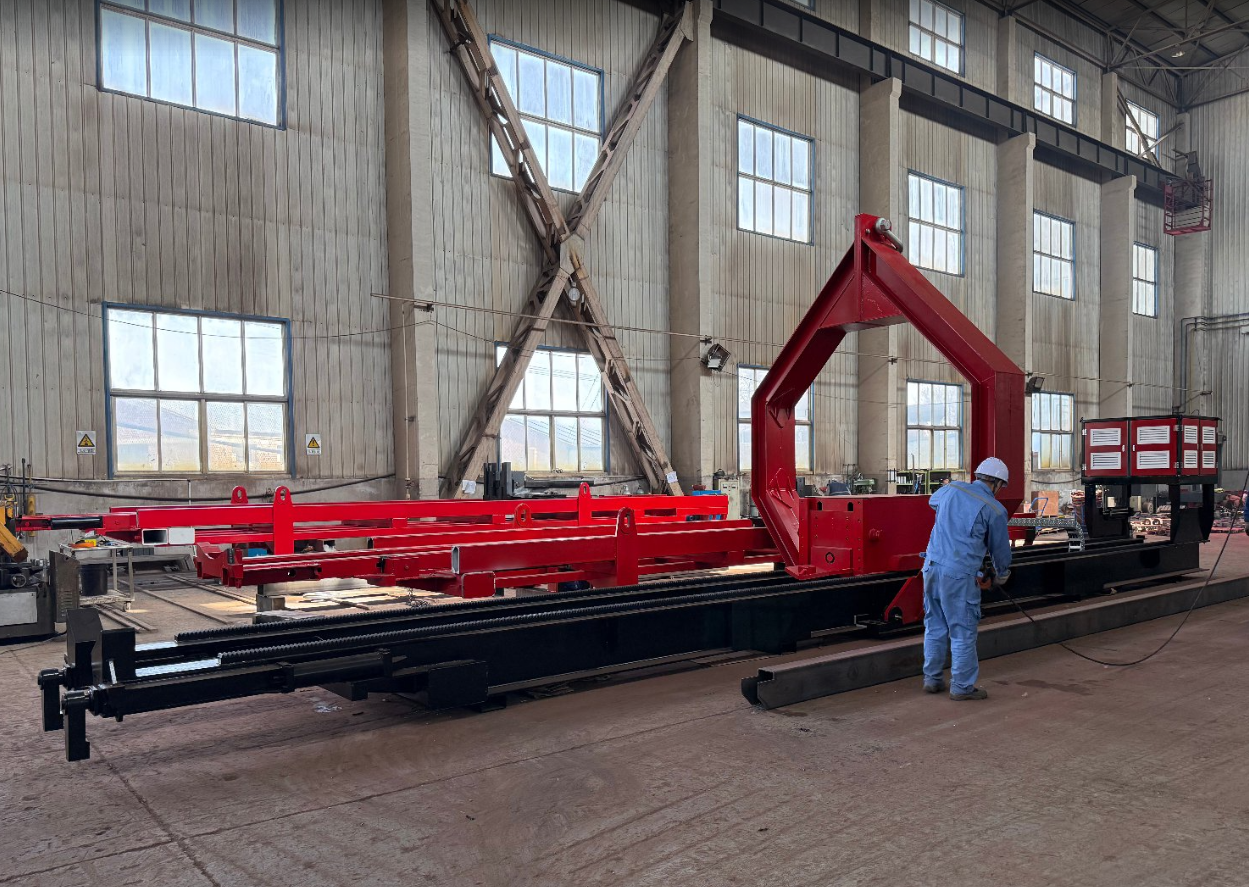

JCD45T Diesel Tube Bundle Extractor

Flexible 45T configuration covering three regular lengths and larger normal bundle diameters.

Regular Length 6000 / 9000 / 12000 mm

Normal Diameter 1800 / 2000 / 2200 mm

65T Series

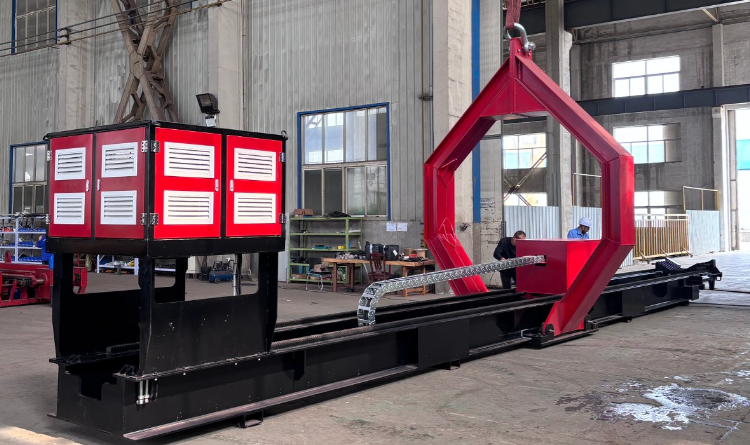

JCD65T Diesel Tube Bundle Extractor

Higher-capacity 65T configuration for longer bundles and larger normal bundle diameters.

Regular Length 9000 / 12000 mm

Normal Diameter 2000 / 2200 / 2500 mm

85T Series

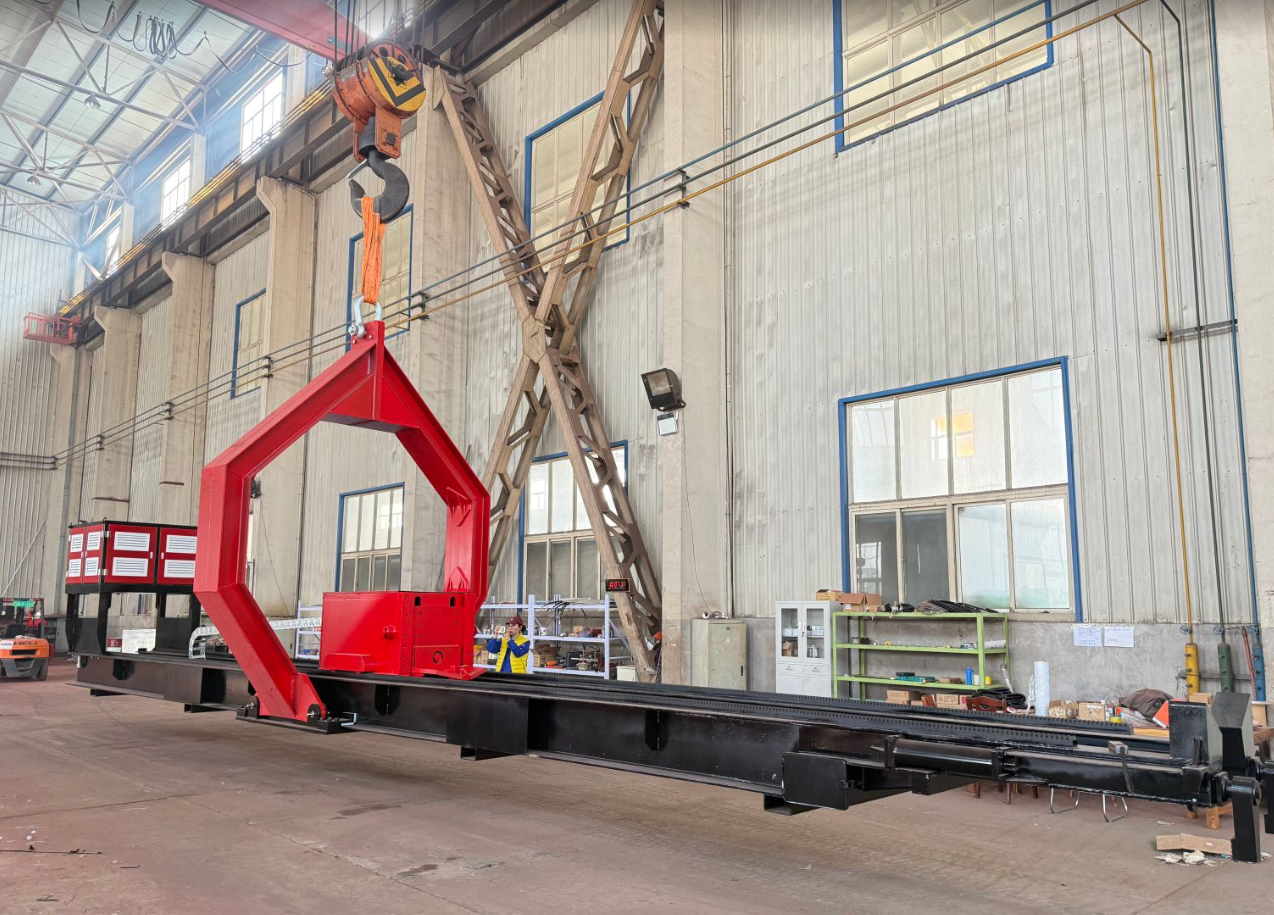

JCD85T Diesel Tube Bundle Extractor

85T heavy-duty configuration for large tube bundle diameters up to 3000 mm in the reference matrix.

Regular Length 9000 / 12000 mm

Normal Diameter 2500 / 2800 / 3000 mm

100T Series

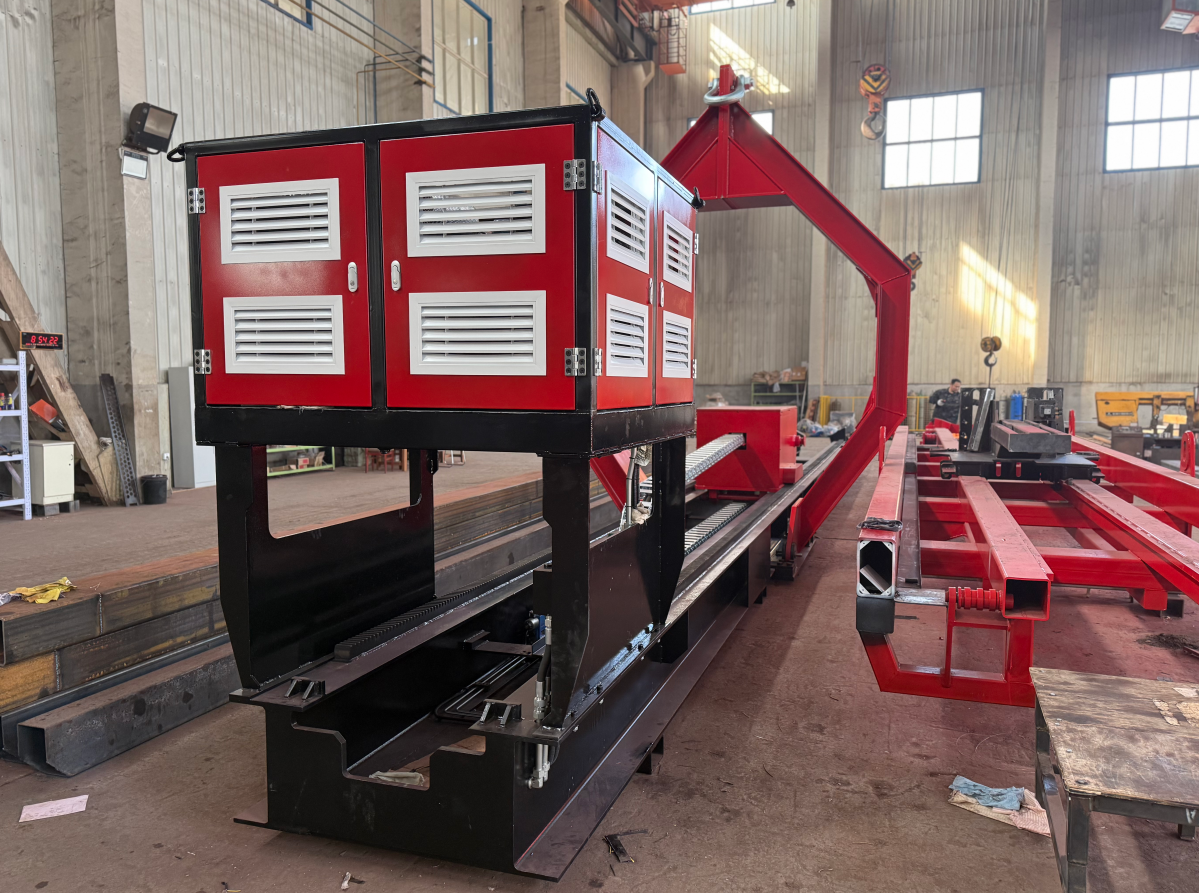

JCD100T Diesel Tube Bundle Extractor

100T heavy-duty configuration for 12000 mm tube bundles and large normal bundle diameters.

Regular Length 12000 mm

Normal Diameter 2500 / 2800 / 3000 mm

125T Series

JCD125T Diesel Tube Bundle Extractor

Highest-capacity reference model with 12000 or 15000 mm regular length and 3000 mm normal diameter.

Regular Length 12000 / 15000 mm

Normal Diameter 3000 mm

Product Advantages

Six Reasons to Choose Diesel

Independent Diesel Power

Diesel drive allows the equipment to operate without relying on external plant electricity, making field maintenance more convenient.

Strong Site Mobility

The diesel configuration is easier to deploy across different maintenance positions and is suitable for sites requiring frequent movement.

Suitable for Outdoor Work

Especially suitable for outdoor maintenance areas, remote units, and operating environments where power access is limited.

Reliable Heavy-Duty Output

Diesel-powered systems provide stable driving force for demanding extraction jobs involving larger tube bundles and heavier loads.

No Dependence on Plant Power

The machine can keep working even where fixed electrical infrastructure is unavailable, unstable, or inconvenient to access.

Flexible Field Matching

Diesel tube bundle extractors can be selected and configured according to bundle dimensions, site layout, and actual maintenance conditions.

Diesel Equipment Photos

Diesel Tube Bundle Extractor in Production and Service

Workshop

Production View

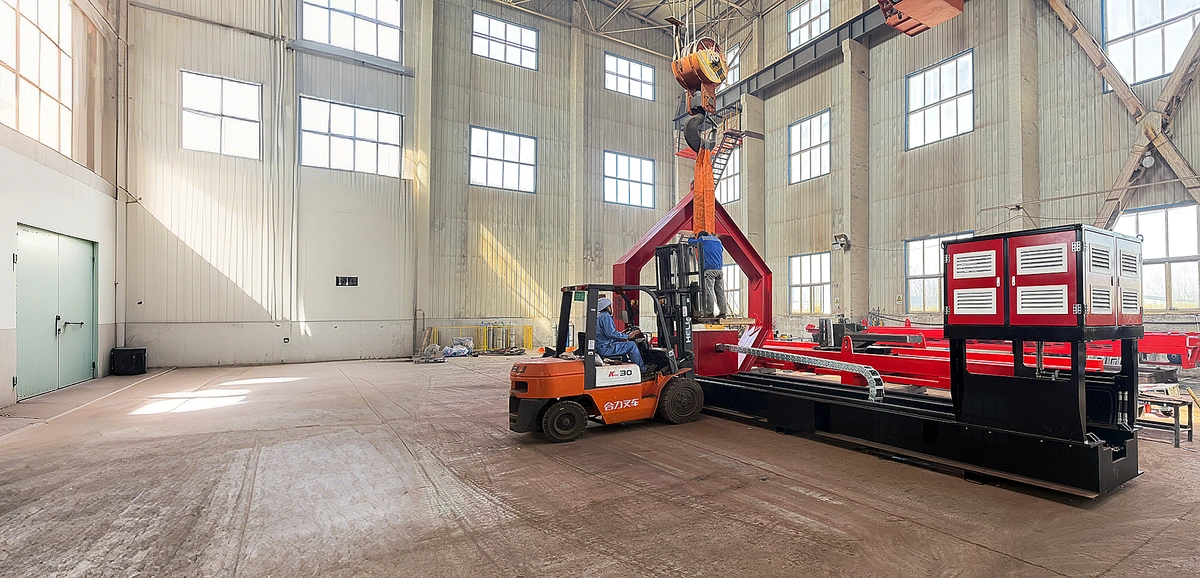

Diesel tube bundle extractor manufacturing and assembly inside our workshop.

Assembly

Diesel Power Unit Integration

Complete diesel-powered unit assembled for field maintenance operations.

Hoisting

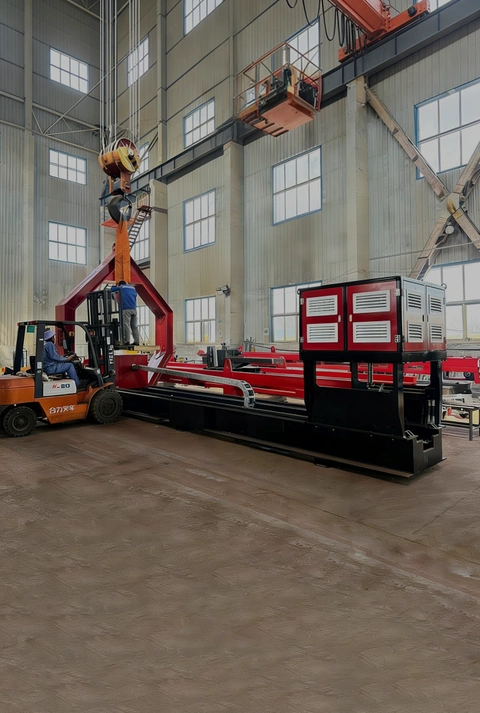

Frame Hoisting Check

Structural lifting inspection during assembly to verify frame stability, alignment, and readiness for final installation.

Control

Remote Control Detail

Wireless remote control unit supports safer distance operation and more precise movement during bundle extraction work.

Inspection

Final Check

Functional inspection before delivery and jobsite deployment.

Equipment

Real Machine View

Actual appearance of the diesel tube bundle extractor for project reference.

Applications

Where the Diesel Model Performs Best

Refinery

Outdoor Maintenance

Suitable for refinery maintenance projects where independent power supply and flexible movement are required.

Petrochemical

Turnaround Service

Ideal for shutdown and turnaround operations in large plant areas, especially where external power is limited.

Power Station

Remote Operation

Applicable to maintenance work in outdoor or temporary service areas without stable electrical support.

Industrial Plant

Field Service Area

More suitable for demanding field conditions where stronger site adaptability and diesel-driven operation are preferred.

Questions

Common questions

Before operation, check the diesel fuel level, hydraulic system, engine status, fasteners, and travel path. It is also important to confirm the tube bundle weight, length, and diameter, as well as the actual site space, before selecting the suitable diesel model and working method.

Daily maintenance should include cleaning the machine after use, checking engine oil, hydraulic oil, hoses, and seals, and lubricating key moving parts on time. Regular inspection of the diesel engine and hydraulic components helps keep the equipment reliable for long-term field service.

Operating duration and duty cycle must follow the approved instructions for the supplied configuration. Confirm the required operating schedule with our technical team.

During operation, attention should be paid to load limits, site stability, hydraulic condition, operator coordination, and emergency stop readiness. It is also necessary to ensure proper ventilation, safe fuel management, and clear working space around the diesel equipment.
