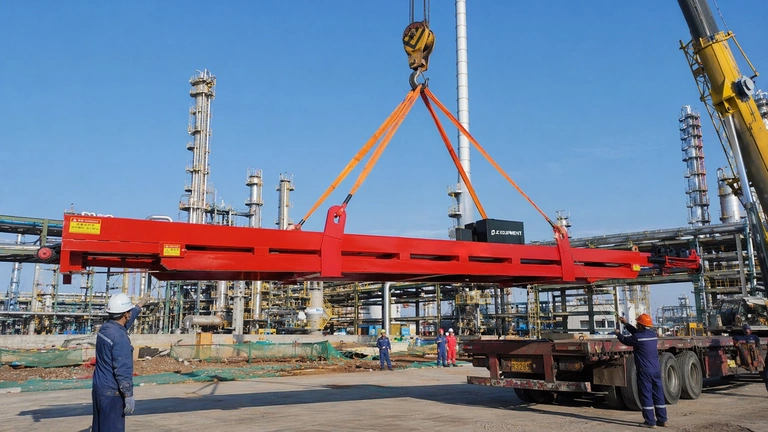

JCE220 Electric Tube Bundle Extractor
Two long-bundle electric options with different force and power requirements.
JCE220 focuses on nine- and twelve-metre bundles in the 2200 mm diameter class. Moving between its two variants changes more than working length, making early electrical and lifting checks worthwhile.
JCE220 Technical Specifications
JCE220
The -9 and -12 configurations carry different power values as well as different load and force references.
| Model / Variant | JCE220-9 | JCE220-12 |
|---|---|---|
| Regular Tube Bundle Length (mm) | 9000 | 12000 |
| Reference Tube Bundle Diameter (mm) | 2200 | 2200 |
| Maximum Pulling Force (T) | 60 | 65 |
| Maximum Bundle Load (T) | 60 | 65 |
| Dead Load (T) | 9.6 | 10.8 |
| Overall Dimensions (mm) | 12600 × 2400 × 1450 | 15600 × 2400 × 1450 |
| Power (kW) | 18 | 21.5 |
Compare the complete nine- and twelve-metre arrangements.
A project considering JCE220 should decide which length variant matches the exchanger before finalising site services. The longer entry has a higher force and load reference, a different power value and greater equipment weight.
Treat that change as a configuration decision rather than a simple length adjustment. Align the selected row with the bundle schedule, electrical provision and equipment handling information used by the maintenance contractor.
