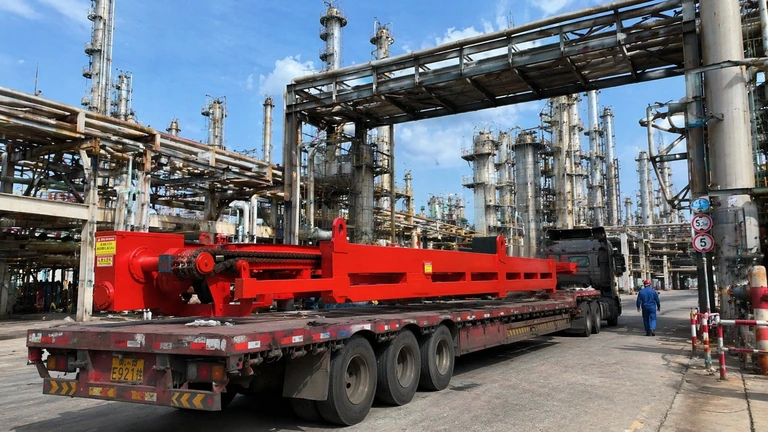

JCE140 Electric Tube Bundle Extractor
A 30T electric reference for six-metre bundles in the 1400 mm diameter class.
JCE140 is the next short-length option when a project needs more pulling and load capacity than the smaller electric entries. Its listed configuration keeps length selection straightforward.
JCE140 Technical Specifications
JCE140
A single JCE140-6 configuration is listed, with its own load, weight and overall dimensions.
| Model / Variant | JCE140-6 |
|---|---|
| Regular Tube Bundle Length (mm) | 6000 |
| Reference Tube Bundle Diameter (mm) | 1400 |
| Maximum Pulling Force (T) | 30 |
| Maximum Bundle Load (T) | 30 |
| Dead Load (T) | 4.8 |
| Overall Dimensions (mm) | 9600 × 1600 × 1230 |
| Power (kW) | 13.2 |
Step up the force class for a defined six-metre assembly.
JCE140-6 is suited to a focused model review: one listed bundle length, one diameter reference and a 30T force and load entry. That makes the comparison with smaller electric models direct without introducing alternative long-frame configurations.
Although JCE120-6 and JCE140-6 share the same listed power value, their capacities and equipment dimensions differ. Select from the complete data row rather than assuming that a matching power figure means equivalent equipment.
