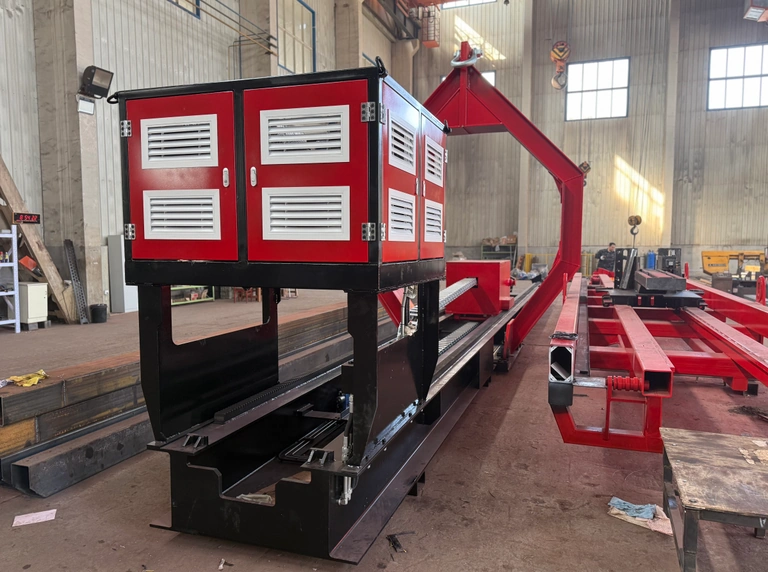

JCD100T Diesel Tube Bundle Extractor
A twelve-metre diesel reference model for projects requiring the 100T class.
JCD100T concentrates on a defined long-bundle length with three large-diameter references. It offers a focused comparison point for heavy exchanger assemblies rather than a broad menu of length options.
JCD100T Technical Specifications
JCD100T
One regular length is listed for JCD100T. Confirm the hanging-frame weight and lifting details for the chosen arrangement.
| Model / Variant | JCD100T |
|---|---|
| Regular Tube Bundle Length (mm) | 12000 |
| Reference Tube Bundle Diameter (mm) | 2500/2800/3000 |
| Maximum Pulling Force (T) | 100 |
| Maximum Bundle Load (T) | 100 |
| Dead Load (T) | Varies with hanging frame |
| Overall Dimensions (mm) | 14370 × 1500 × 2360 |
| Power (kW) | 36.5 |
Total Power applies to the listed reference configuration. Confirm the required configuration with our technical team.
Match a defined heavy-bundle job to a defined configuration.
When the exchanger schedule already specifies a twelve-metre assembly, the selection can concentrate on load, diameter and the conditions at the extraction position. JCD100T brings those checks into the 100T diesel class.
The reference ratings do not replace a job review. Confirm the assembly weight, the expected extraction conditions and how the bundle will be transferred after removal. The complete operation should be considered before the machine is assigned to the shutdown.
Other Diesel Models
Compare JCD85T, JCD125T, JCD65T for alternative diesel configurations alongside JCD100T.

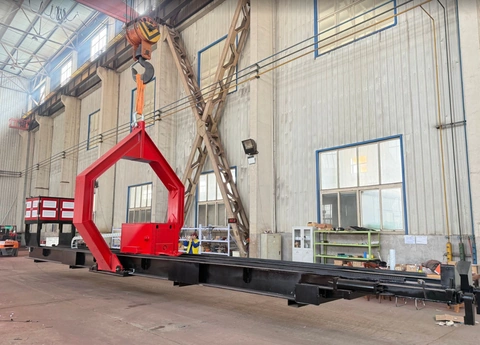

JCD85T Diesel Tube Bundle Extractor
85T heavy-duty configuration for large tube bundle diameters up to 3000 mm in the reference matrix.
View Product →
JCD125T Diesel Tube Bundle Extractor
Highest-capacity reference model with 12000 or 15000 mm regular length and 3000 mm normal diameter.
View Product →

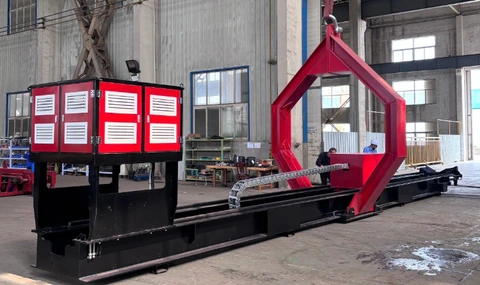

JCD65T Diesel Tube Bundle Extractor
