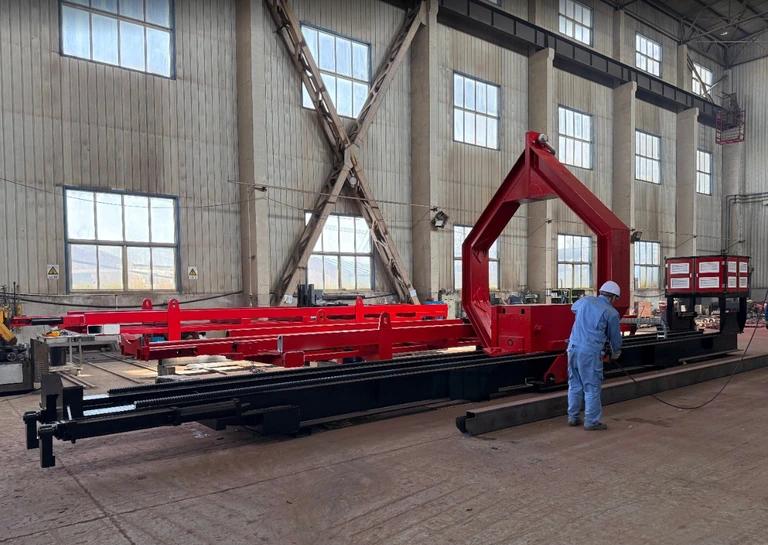

JCD45T Diesel Tube Bundle Extractor
A three-length diesel range for projects with a varied exchanger schedule.
JCD45T spans six-, nine- and twelve-metre reference lengths. It gives turnaround planners a broader set of configurations to compare when a single shutdown includes different bundle geometries.
JCD45T Technical Specifications
JCD45T
Three regular lengths and three diameter references appear in this diesel class. Confirm the required combination.
| Model / Variant | JCD45T |
|---|---|
| Regular Tube Bundle Length (mm) | 6000/9000/12000 |
| Reference Tube Bundle Diameter (mm) | 1800/2000/2200 |
| Maximum Pulling Force (T) | 45 |
| Maximum Bundle Load (T) | 45 |
| Dead Load (T) | Varies with hanging frame |
| Overall Dimensions (mm) | 8600/11760/14370 × 1500 × 2360 |
| Power (kW) | 36.5 |
Total Power applies to the listed reference configuration. Confirm the required configuration with our technical team.
Build the equipment plan around a mixed exchanger list.
A turnaround may bring together short, wide bundles and longer assemblies from another unit. The value of JCD45T is its range of listed lengths and diameters, which allows a configuration review across that mixed schedule instead of starting with only one exchanger.
The alternatives in the matrix should not be read as a promise that every length and diameter combination is interchangeable. Submit the exchanger list so the proposed setup, changes between jobs and lifting arrangements can be checked together.
