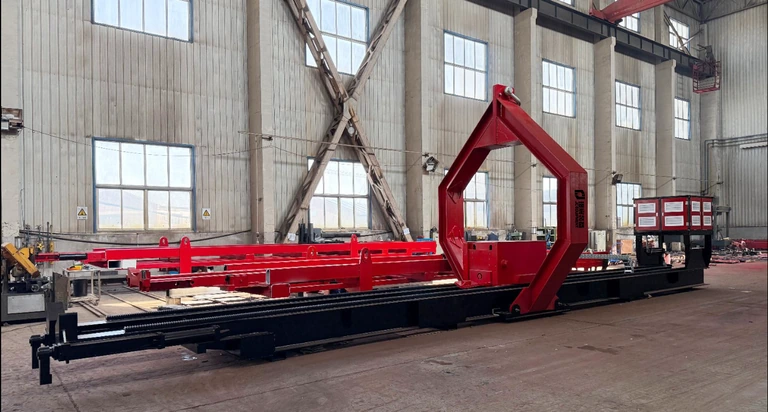

JCD125T Diesel Tube Bundle Extractor
The upper end of the listed diesel range, including a fifteen-metre bundle option.
JCD125T is intended for comparison on the largest jobs represented in the diesel reference matrix. Length, site logistics and the selected hanging arrangement are major parts of the review at this scale.
JCD125T Technical Specifications
JCD125T
The 125T diesel class lists twelve- and fifteen-metre lengths with a 3000 mm reference diameter.
| Model / Variant | JCD125T |
|---|---|
| Regular Tube Bundle Length (mm) | 12000/15000 |
| Reference Tube Bundle Diameter (mm) | 3000 |
| Maximum Pulling Force (T) | 125 |
| Maximum Bundle Load (T) | 125 |
| Dead Load (T) | Varies with hanging frame |
| Overall Dimensions (mm) | 14370/17370 × 1500 × 2360 |
| Power (kW) | 36.5 |
Total Power applies to the listed reference configuration. Confirm the required configuration with our technical team.
Prepare the long-bundle operation before equipment reaches site.
A fifteen-metre bundle brings a substantial travel and handling envelope. JCD125T provides the longest listed diesel reference option, making transport planning and the working corridor key subjects at the enquiry stage.
Bring the exchanger layout, delivery route and proposed lifting sequence into the same discussion. The alternative overall lengths shown in the table should be matched to the intended bundle configuration before site positions are reserved.
Other Diesel Models
Compare JCD100T, JCD85T, JCD65T for alternative diesel configurations alongside JCD125T.

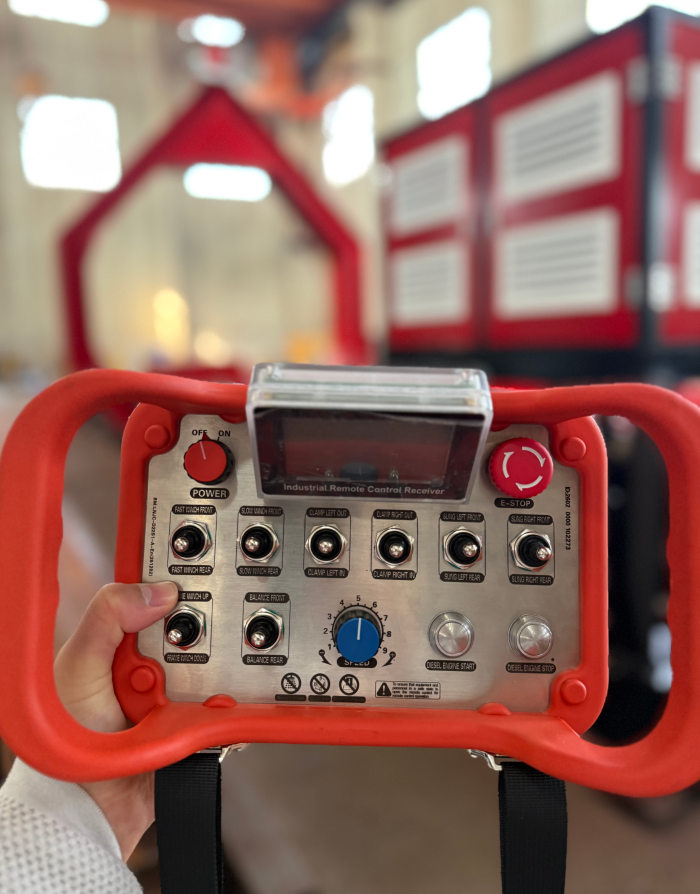

JCD100T Diesel Tube Bundle Extractor
