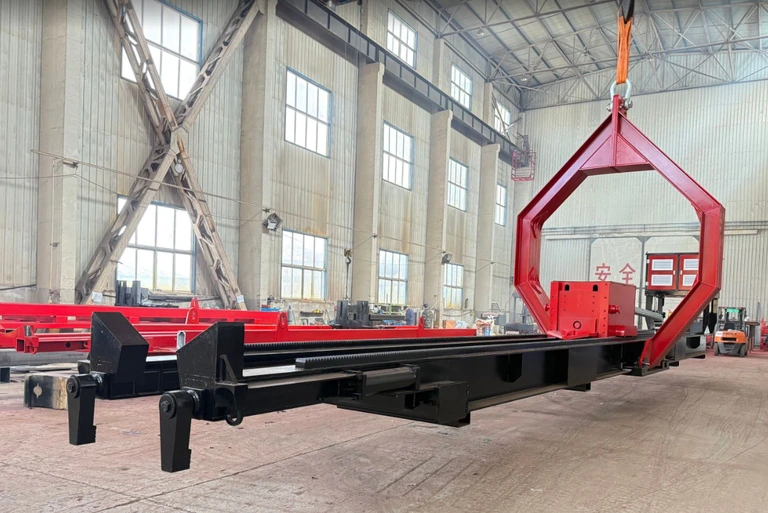

JCD25T Diesel Tube Bundle Extractor
A diesel option for six-metre bundles that need more capacity than the smallest model.
JCD25T moves the selection toward wider tube sheets while keeping the reference bundle length at six metres. It is worth comparing when JCD15T is too small but the job does not call for a longer extraction arrangement.
JCD25T Technical Specifications
JCD25T
Six-metre reference configuration with two listed bundle diameters. Hanging-frame weight is confirmed with the selected arrangement.
| Model / Variant | JCD25T |
|---|---|
| Regular Tube Bundle Length (mm) | 6000 |
| Reference Tube Bundle Diameter (mm) | 1200/1400 |
| Maximum Pulling Force (T) | 25 |
| Maximum Bundle Load (T) | 25 |
| Dead Load (T) | Varies with hanging frame |
| Overall Dimensions (mm) | 8600 × 1450 × 1200 |
| Power (kW) | 36.5 |
Total Power applies to the listed reference configuration. Confirm the required configuration with our technical team.
More room for the bundle, without moving into the long-length range.
A maintenance team handling short, broader bundles should compare diameter and load together. JCD25T covers the next diameter band in the diesel matrix, giving the team a specific starting point for jobs outside the smallest frame’s reference envelope.
Before arranging delivery, check the exchanger approach and the selected hanging frame. Frame choice affects equipment weight, so crane planning should use the confirmed configuration rather than an assumed catalogue mass.
Other Diesel Models
Compare JCD15T, JCD35T, JCD45T for alternative diesel configurations alongside JCD25T.

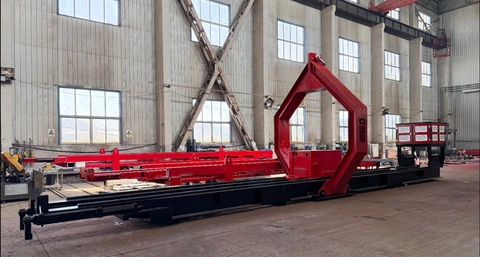

JCD15T Tube Bundle Extractor
