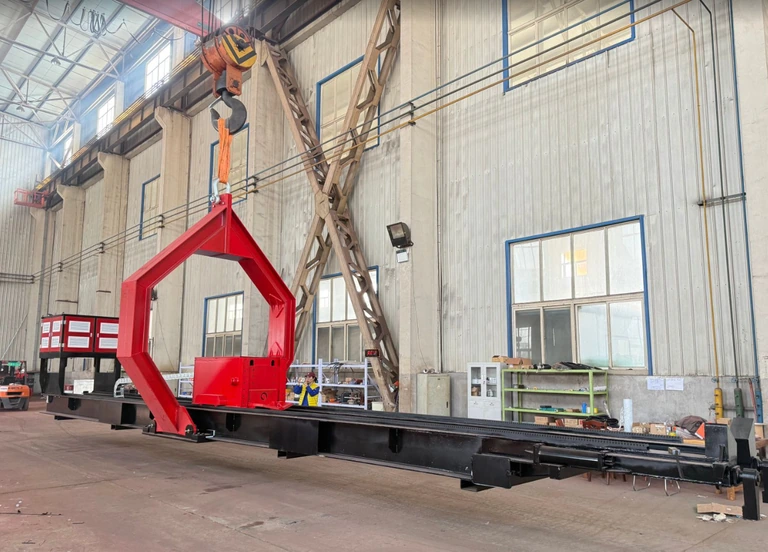

JCD85T Diesel Tube Bundle Extractor
Diesel extraction equipment for large-diameter bundles in the nine- to twelve-metre range.
JCD85T extends the reference diameter envelope to three metres. For this class, access around the tube sheet and the space occupied by the supported assembly should be reviewed early.
JCD85T Technical Specifications
JCD85T
An 85T reference class with diameter options from 2500 to 3000 mm. Site-clearance drawings help define the final setup.
| Model / Variant | JCD85T |
|---|---|
| Regular Tube Bundle Length (mm) | 9000/12000 |
| Reference Tube Bundle Diameter (mm) | 2500/2800/3000 |
| Maximum Pulling Force (T) | 85 |
| Maximum Bundle Load (T) | 85 |
| Dead Load (T) | Varies with hanging frame |
| Overall Dimensions (mm) | 12 m configuration: 14,370 × 1,500 × 2,360 mm (L × W × H). 9 m configuration: Overall dimensions vary by bundle length and configuration. |
| Power (kW) | 36.5 |
Total Power applies to the listed reference configuration. Confirm the required configuration with our technical team.
Plan for diameter as carefully as you plan for weight.
A large tube sheet can create clearance challenges even when the bundle length is familiar. Platforms, nearby piping and the intended crane approach can all influence the final arrangement. JCD85T is a candidate for reviewing those larger-diameter jobs.
The reference table lists a common overall-size entry alongside two bundle lengths. Confirm the exact machine arrangement for the selected job, especially where site drawings leave limited clearance for positioning or bundle movement.
Other Diesel Models
Compare JCD65T, JCD100T, JCD45T for alternative diesel configurations alongside JCD85T.
JCD65T Diesel Tube Bundle Extractor
Higher-capacity 65T configuration for longer bundles and larger normal bundle diameters.
View Product →
JCD100T Diesel Tube Bundle Extractor
100T heavy-duty configuration for 12000 mm tube bundles and large normal bundle diameters.
View Product →
JCD45T Diesel Tube Bundle Extractor
Flexible 45T configuration covering three regular lengths and larger normal bundle diameters.
View Product →
