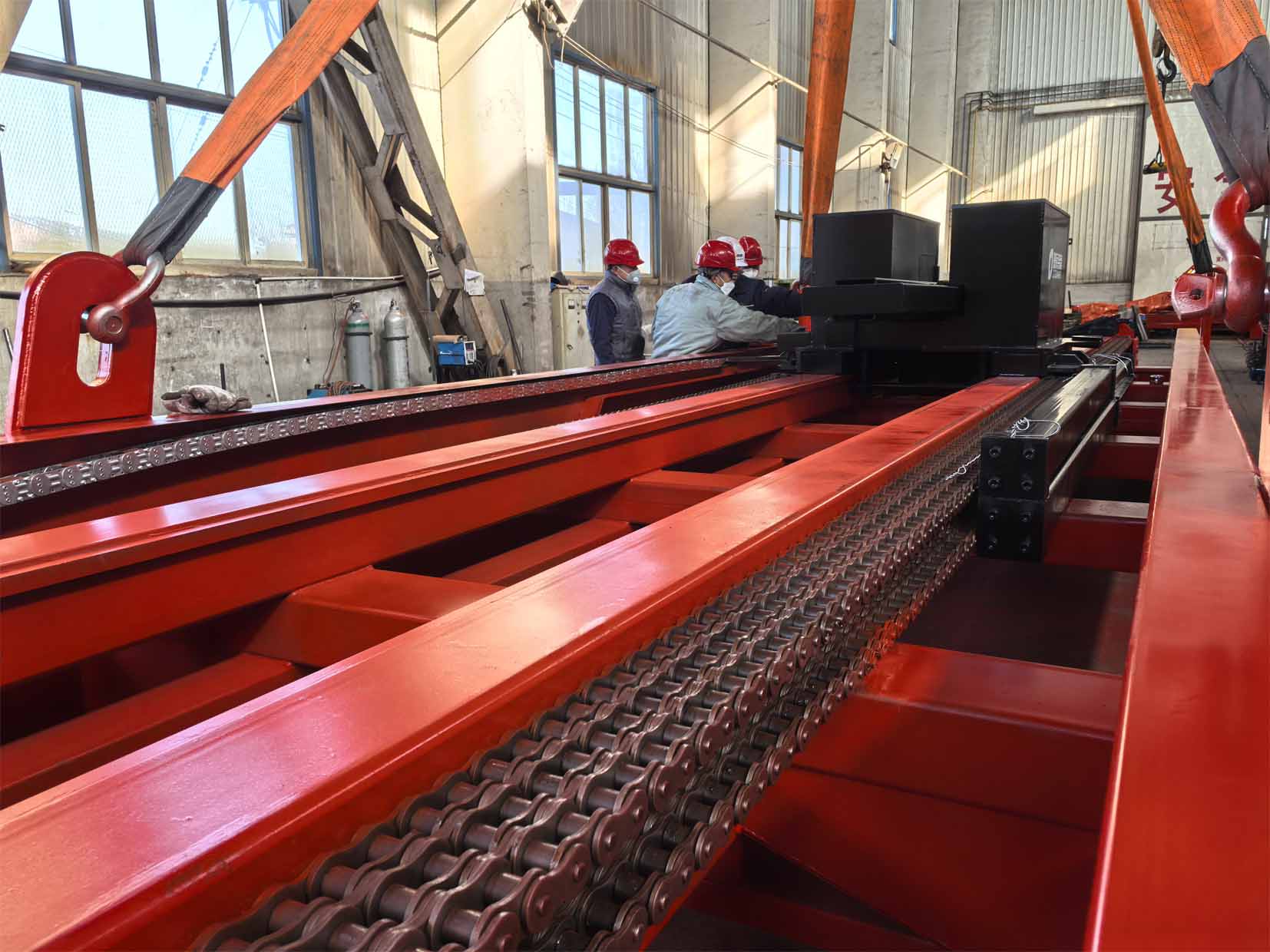

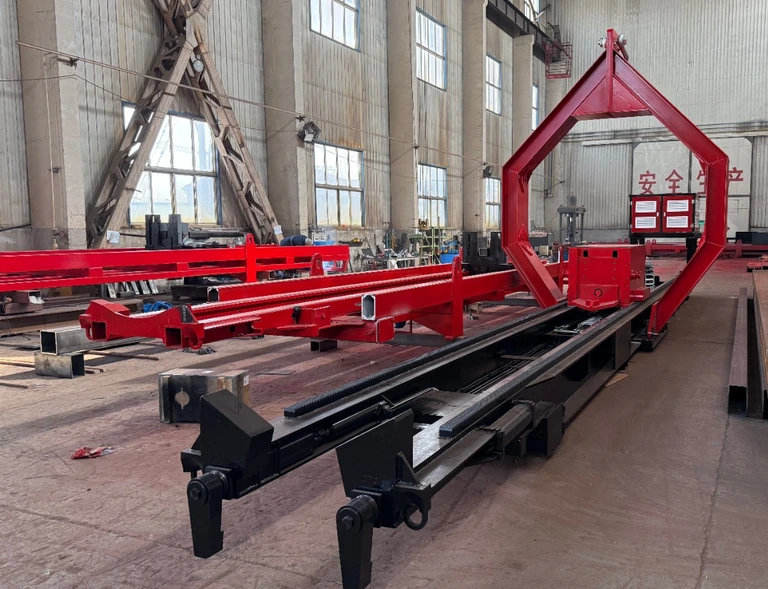

JCD35T Diesel Tube Bundle Extractor
Two reference lengths for maintenance teams handling both six- and nine-metre bundles.
JCD35T brings length selection into the diesel range. Its role is to cover medium-size bundle work where the extractor’s reach and the available approach space deserve as much attention as the pulling requirement.
JCD35T Technical Specifications
JCD35T
A choice of regular lengths within the 35T diesel class. Confirm the overall size for the selected length.
| Model / Variant | JCD35T |
|---|---|
| Regular Tube Bundle Length (mm) | 6000/9000 |
| Reference Tube Bundle Diameter (mm) | 1400/1600 |
| Maximum Pulling Force (T) | 35 |
| Maximum Bundle Load (T) | 35 |
| Dead Load (T) | Varies with hanging frame |
| Overall Dimensions (mm) | 8600/11760 × 1500 × 2360 |
| Power (kW) | 36.5 |
Total Power applies to the listed reference configuration. Confirm the required configuration with our technical team.
Choose the working length around the exchanger position.
A longer bundle changes where the machine, crane and receiving area must sit. With two regular lengths in the reference matrix, JCD35T lets the project team compare a shorter arrangement with a nine-metre option before committing to site equipment.
The listed overall lengths differ between configurations. Use the relevant footprint to check the route into the unit and the space in front of the exchanger; the bundle’s own length alone does not describe the complete working envelope.
Other Diesel Models
Compare JCD25T, JCD45T, JCD15T for alternative diesel configurations alongside JCD35T.
JCD25T Diesel Tube Bundle Extractor
25T configuration for 6000 mm tube bundles with 1200 or 1400 mm normal bundle diameters.
View Product →
JCD45T Diesel Tube Bundle Extractor
Flexible 45T configuration covering three regular lengths and larger normal bundle diameters.
View Product →

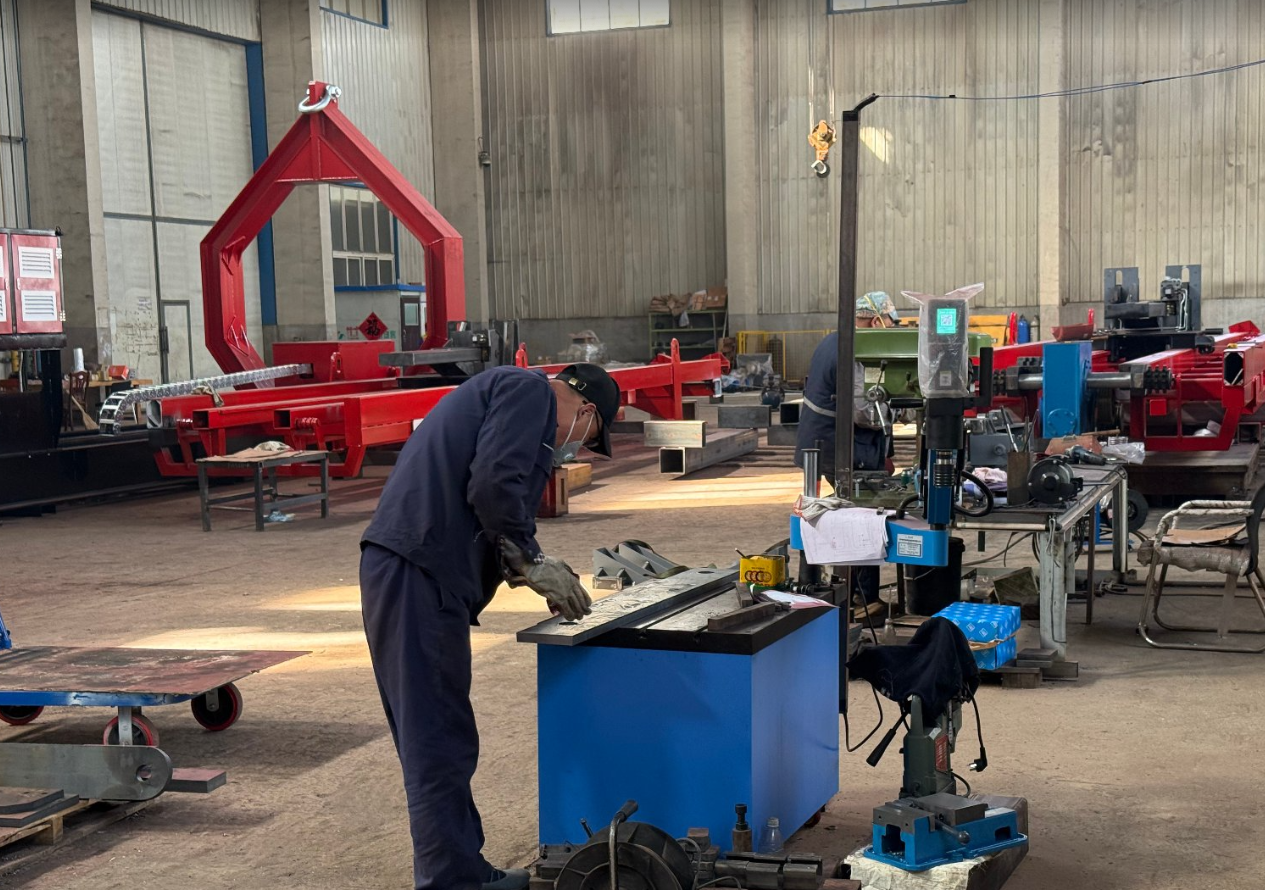

JCD15T Tube Bundle Extractor
