Tube Bundle Cleaning
Internal Bundle Cleaner
Automated high-pressure cleaning system for the internal surfaces of heat exchanger tubes.
The Jingchen Internal Bundle Cleaner combines controlled cleaning-head positioning with high-pressure water jet cleaning to improve tube cleaning efficiency, consistency and operator safety during refinery, petrochemical and industrial plant maintenance.
Remote operation keeps personnel away from the high-pressure cleaning area
Designed for different tube bundle dimensions and cleaning requirements
Focus Features
Faster tube cleaning with less manual operation
During refinery and petrochemical shutdowns, large numbers of heat exchanger tubes may need to be cleaned within a limited maintenance window. The Internal Bundle Cleaner combines controlled positioning and high-pressure water cleaning to improve efficiency and repeatability throughout the cleaning process.
Controlled cleaning-head positioning
Horizontal and vertical movement allows accurate alignment with the required tube positions and reduces repetitive manual positioning.
High-pressure water cleaning

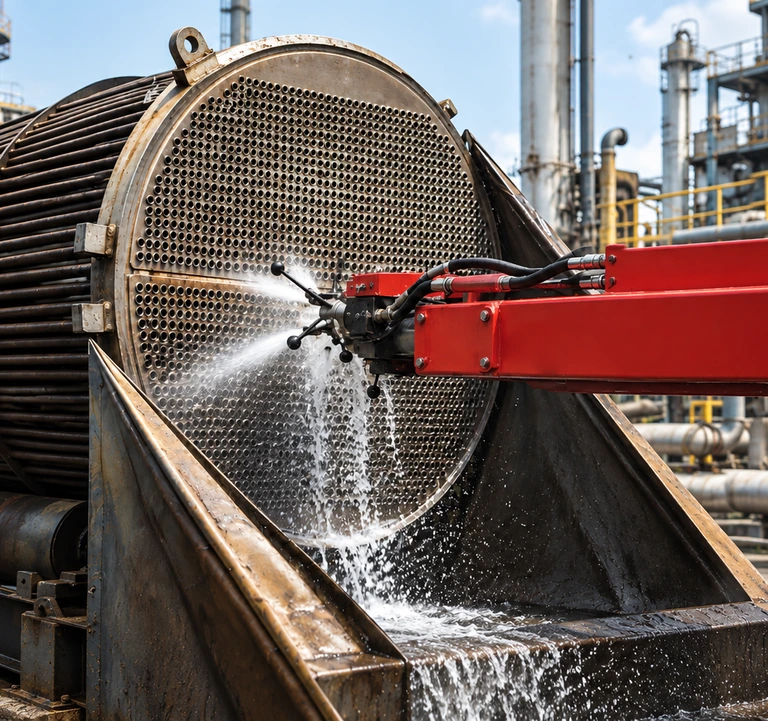

High-pressure water removes scale, sludge and process deposits from the internal surfaces of heat exchanger tubes.
Remote control operation
Operators can control machine movement and cleaning from a safer position away from the immediate high-pressure jetting area.
Flexible setup
The equipment can be configured for different exchanger heights, tube bundle sizes and maintenance conditions.
Industrial maintenance design
A robust field-oriented structure supports transportation, positioning and repeated use during plant shutdown and turnaround work.
Technical Data
Internal Bundle Cleaner specifications
Main machine dimensions, lancebed travel and lance operating data.
Built for industrial tube cleaning

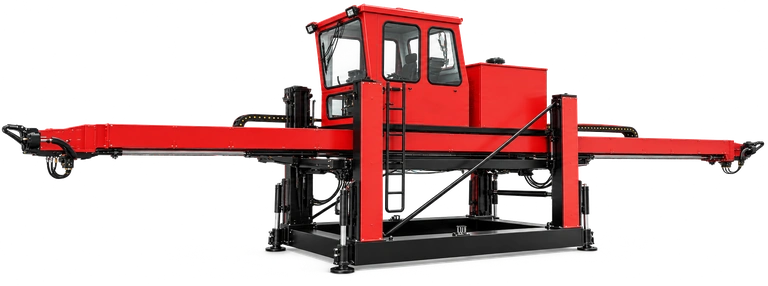

The Internal Bundle Cleaner is designed for positioning and operating high-pressure cleaning lances across the heat exchanger tube sheet, with working height and lateral travel suited to field maintenance.
Internal Bundle Cleaner
Machine Data
Scroll to view specifications
01
Total weight
5,500 kg (12,125 lb)
02
Height (transport mode)
236 cm (92.9 in)
03
Length
1,150 cm (452.8 in)
04
Width
220 cm (86.6 in)
05
Min. height lancebed
60 cm (23.6 in)
06
Max height lancebed
210 cm (82.7 in)
07
Max. height outriggers (option)
50 cm or 120 cm (19.7 or 47.2 in)
08
Max lancebed left/right range
150 cm (59.1 in)
09
Max. working length of lances
930 cm (366.1 in)
10
Max. lance speed
100 cm/sec (39.1 in/sec)
Designed for Turnaround Maintenance
Clean more tubes with less manual handling
Efficient exchanger cleaning is critical during plant shutdowns. By combining controlled positioning with high-pressure cleaning, the Internal Bundle Cleaner helps maintenance teams reduce repetitive manual work while maintaining a more consistent cleaning process across the bundle.
01
Higher cleaning productivity
02
Reduced repetitive manual positioning
03
More consistent cleaning results
04
Safer operator working position
Concept Layout — Internal Bundle Cleaner
